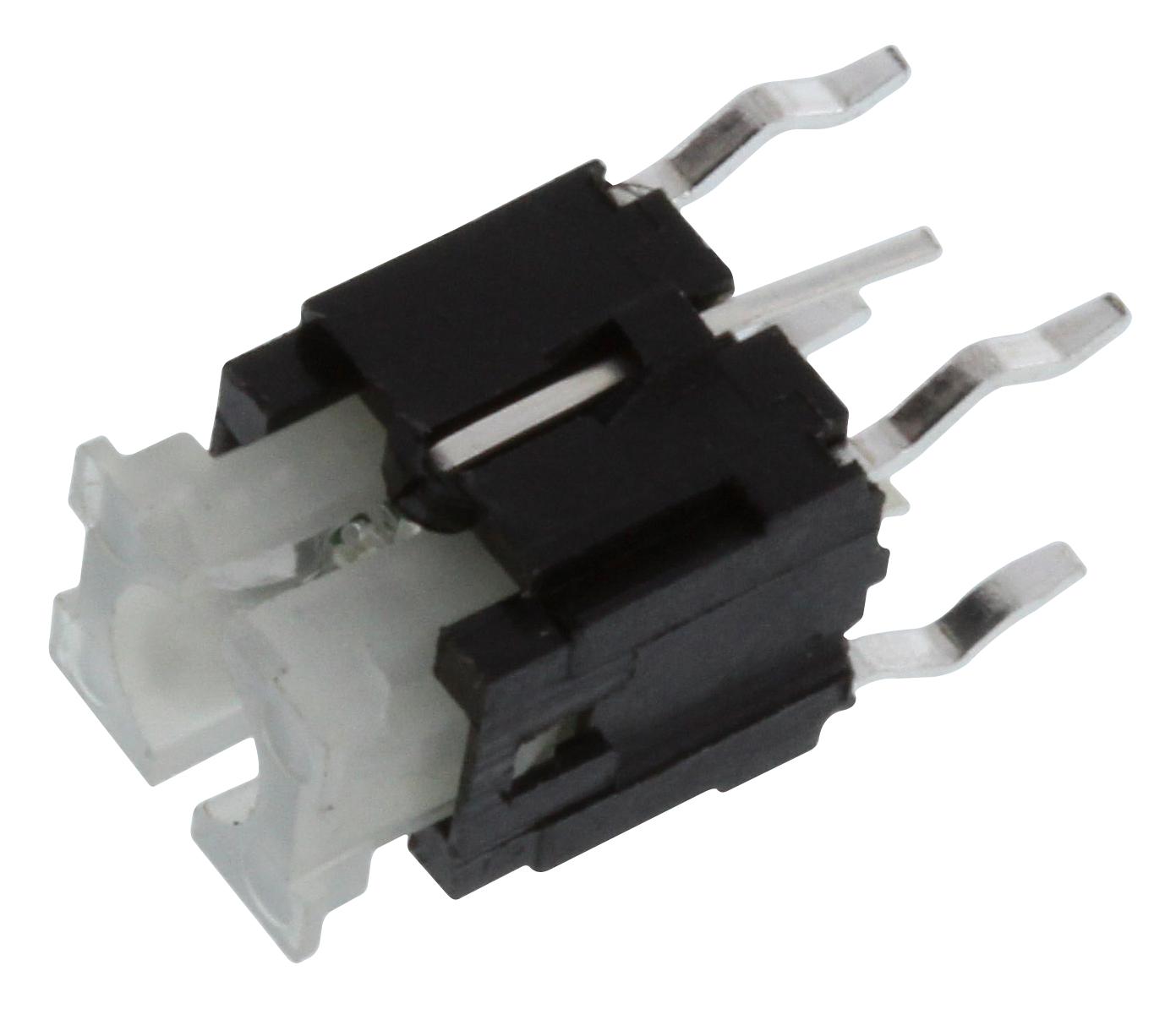

C&K COMPONENTS ILSTB18060 Integrated LED Tact Switch
The ILS Series Integrated LED Tact Switch offers a compact, durable, and versatile switching solution suitable for consumer electronics, health monitoring devices, and test & measurement applications. It features high cycle durability of 100,000 cycles, operating temperature from -40°C to +85°C, and multiple LED color options including red, yellow, green, blue, and white. The switch has a travel of 0.25 mm with a bounce time of 5ms, rated for up to 30VDC and 100mA, making it ideal for reliable on/off activation in various electronic devices.
C&K COMPONENTS ILSTB18060 Integrated LED Tact Switch Specifications:
- Travel: 0.25 mm ± 0.1 mm
- Mechanical Operating Life: 100,000 cycles
- Rating: 100mA max. @ 30VDC, 10pA min. @ 1VDC
- Insulation Resistance: 100MΩ min.
- Dielectric Withstanding Voltage: 250VAC for 1 min
- Bounce Time: ON/OFF 5ms max.
- Initial Contact Resistance: 100mΩ max.
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Packaging: Bulk in bags of 500 pieces, 2 bags per carton
- LED Color Options: Red, Yellow/Green, Blue, White, Green
- LED Forward Voltage: 2.3V to 3.6V depending on color
- LED Current: 5mA typical
- Dimensions: Height options of 7.00 mm, 7.20 mm, 9.00 mm; P.C.B land dimension: 4.5 mm to 6.2 mm
- Actuation Force: 180gf or 250gf
- Mounting Style: THT (through-hole)
Buy the CK Switches ILSTB18060 – Reliable Tactile Switch for Industrial Applications
Order CK Switches ILSTB18060 online today and enjoy the convenience of fast delivery. This durable, energy-efficient tactile switch offers high cycle life and precise actuation for reliable performance across various consumer electronics, medical devices, and test equipment. Its compact size and multiple LED color options allow easy integration into your designs. With excellent temperature tolerance and low contact resistance, it ensures long-term operation in demanding environments. Don’t miss out—purchase this versatile switch now for your next project!
Buy CK Switches ILSTB18060 now and experience unmatched reliability and performance in electronic on/off switching.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ILSTB18060?
You can click on the BUY or RFQ button to purchase ILSTB18060 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ILSTB18060?
You can download the ILSTB18060 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ILSTB18060?
C&K COMPONENTS
