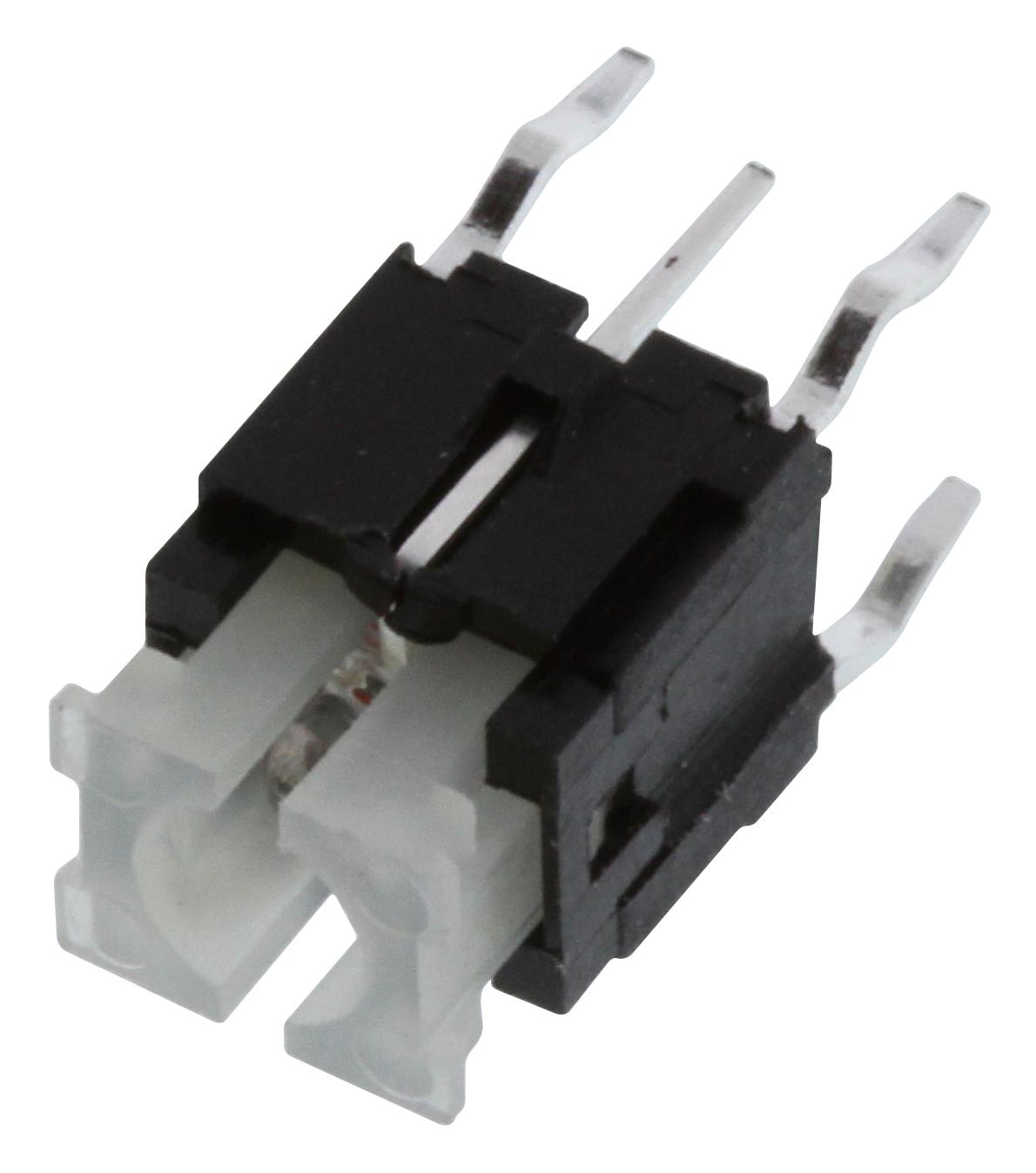

C&K COMPONENTS ILSTB25010 LED Tactile Switch
This integrated LED tactile switch offers a compact design suitable for consumer electronics, health monitors, and audio/video control panels. Featuring a travel of 0.25 mm, it withstands 100,000 life cycles, with a rated voltage of 30VDC and current of 100mA. The switch operates reliably between -40°C to +85°C, ensuring excellent environmental durability. Available in multiple heights and LED colors such as red, yellow/green, blue, white, and green, it is ideal for applications requiring durable, small footprint tactile switches with LED indication.
C&K COMPONENTS ILSTB25010 LED Tactile Switch Specifications:
- Travel: 0.25 mm ± 0.1mm
- Operating Life: 100,000 cycles
- Rating: 100mA max. @ 30VDC, 10pA min. @ 1VDC
- Insulation Resistance: 100MΩ min.
- Dielectric Withstanding Voltage: 250VAC for 1 min
- Bounce Time: ON/OFF 5ms max
- Initial Contact Resistance: 100mΩ max.
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Mechanical Height Options: TA 7.20 mm, TB 8.50 mm, TC 7.00 mm
- LED Colors Available: Red, Yellow/Green, Blue, White, Green
- Circuit Diagrams show circuit configurations for PCB mounting
- Dimensions vary by style, typically around 4.5mm - 6.5mm in height and moderate footprint
- Packaging includes bulk in bags of 500 pieces, suitable for automated assembly
Buy the Buy Integrated LED Tact Switch Part Number ILSTB25010 Online
Order the LED Tactile Switch online today to enhance your electronic control systems. With multiple height options, LED colors, and reliable performance up to 100,000 cycles, this switch is perfect for consumer electronics and industrial applications. Its durability across -40°C to +85°C makes it suitable for various environments. Easy to integrate into your PCB designs with detailed circuit diagrams, this high-quality switch offers a perfect blend of size, durability, and visibility for your project, ensuring seamless operation and user satisfaction.
Buy Integrated LED Tact Switch ILSTB25010 now and experience reliable operation with multiple LED color options for your electronic projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ILSTB25010?
You can click on the BUY or RFQ button to purchase ILSTB25010 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ILSTB25010?
You can download the ILSTB25010 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ILSTB25010?
C&K COMPONENTS
