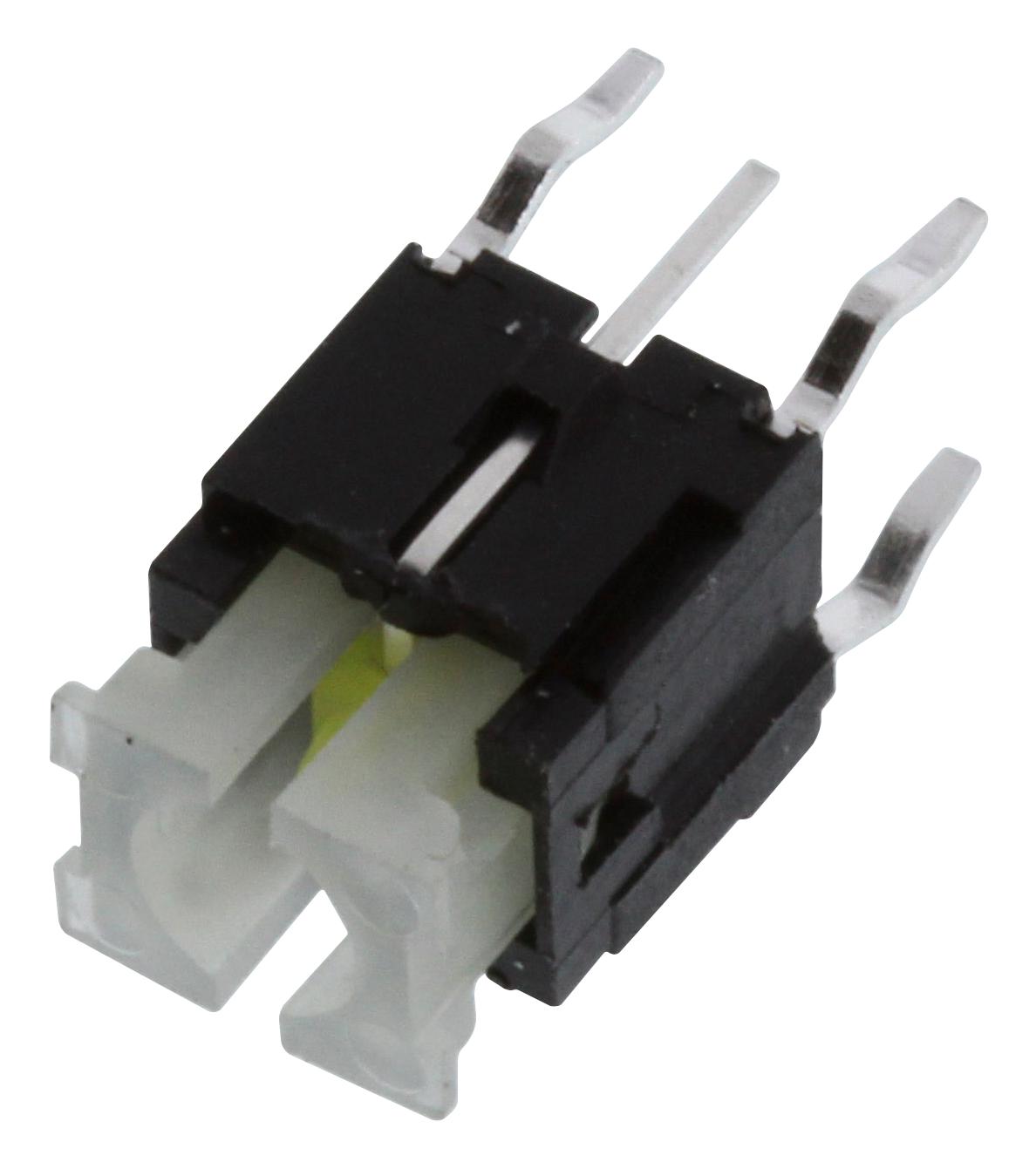

C&K COMPONENTS ILSTB25050 LED Tactile Switch
The integrated LED tactile switch offers a compact, reliable solution with high durability for various electronic applications. It features a travel of 0.25 mm, a mechanical operating life of 100,000 cycles, and utilizes LED indicators in multiple colors. Designed for durability and high performance, it is suitable for consumer electronics, health monitoring devices, test & measurement equipment, and audio/video control boards. The switch operates in temperatures from -40°C to +85°C, with an insulation resistance of 100MΩ and a dielectric withstand voltage of 250VAC. Its small size and LED options make it ideal for space-constrained electronic devices.
C&K COMPONENTS ILSTB25050 LED Tactile Switch Specifications:
- Travel: 0.25 mm ± 0.1 mm
- Operating Life: 100,000 cycles
- Rating: 100mA max. @ 30VDC, 10pA min. @ 1VDC
- Insulation Resistance: 100MΩ min.
- Dielectric Withstanding Voltage: 250VAC for 1 minute
- Bounce Time: ON/OFF 5 ms max.
- Initial Contact Resistance: 100mΩ max.
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Dimensions vary with style; height options of 7.00 mm, 7.20 mm, or 8.50 mm
- Actuation Force options: 180 gf or 250 gf
- LED Colors: Red, Yellow/Green, Blue, White, Green
- LED Power Dissipation: 52-120 mW depending on color
- Operating Voltage for LEDs: 5V to 30V, Forward Voltage up to 3.6V
- Luminous Intensity: 63 to 140 mcd
- Viewing Angle: 35°
- Mounting: THT (Through-Hole) versions available
- Packaged in bulk, 500 pieces per bag, 2 bags per carton
Buy the Innovative Switches ILSTB25050 – Reliable Tactile Switch for Industrial Applications
Experience the high-quality performance of the CKSwitches LED Tactile Switch. Designed for reliability and durability, this switch features multiple LED color options, compact size, and long operational life ideal for consumer electronics, medical devices, and control systems. Easy to mount with through-hole terminals, it supports high cycling durability of 100,000 operations. Its broad temperature range ensures stable operation under harsh environmental conditions. Purchase online today and enhance your electronic device’s responsiveness and user interface with this dependable switch.
Get CKSwitches ILSTB25050 today—built for precision, durability, and space-efficient high-performance switching solutions.
