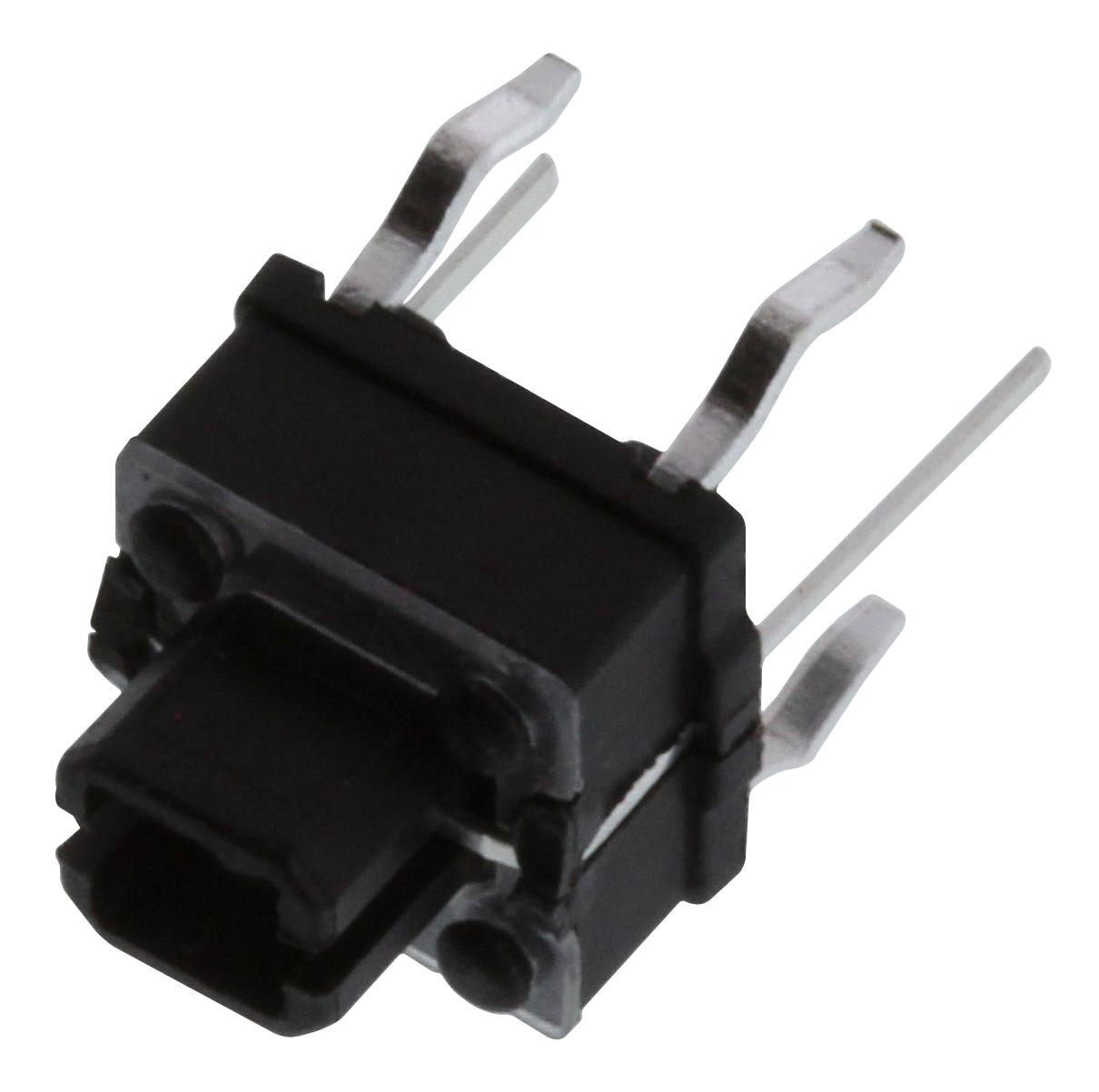

C&K COMPONENTS ILSTC18010 LED Tactile Switch
The ILS Series is an integrated LED tactile switch designed for various electronic applications. It features a compact size with options for different heights, LED colors, and actuation forces. The switch provides a long operational life of 100,000 cycles, with electrical ratings of 100mA at 30VDC and insulation resistance of 100MΩ. Suitable for consumer electronics, health monitoring, and audio/video control, it operates reliably from -40°C to +85°C. Its robust construction and multiple LED color options make it ideal for modern, compact electronic devices.
C&K COMPONENTS ILSTC18010 LED Tactile Switch Specifications:
- Travel: 0.25 mm ± 0.1 mm
- Operating Life: 100,000 cycles
- Rating: 100mA max. @ 30VDC
- Insulation Resistance: 100MΩ min.
- Dielectric Withstanding Voltage: 250VAC (50-60 Hz 2mA) for 1 min
- Bounce Time: ON/OFF 5ms max.
- Initial Contact Resistance: 100mΩ max.
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- LED Options: Red, Yellow/Green, Blue, White, Green
- Style & Height Options: TA 7.20 mm, TB 8.50 mm, TC 7.00 mm
- Actuation Force: 180gf, 250gf
- Mechanical Operation: THT
- Packaging: Bulk in bags of 500, 2 bags per carton
Buy the Buy CKSwitches ILS Series Integrated LED Tact Switch Part Number ILSTC18010 Online
Purchase your CKSwitches ILS Series ILSTC18010 now and enjoy fast shipping and secure online ordering. This high-quality LED tactile switch boasts a long operational life of 100,000 cycles, multiple LED color options, and compact design suitable for consumer electronics, health monitoring devices, and audio/video control systems. Its robust construction ensures durability and reliable performance from -40°C to +85°C. With various height and actuation force options, it’s the perfect choice for your next electronic project. Order today for fast delivery and quality assurance.
Order your CKSwitches ILS Series ILSTC18010 today and enhance your electronic designs with reliable, high-quality tactile switches with LED indicators.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ILSTC18010?
You can click on the BUY or RFQ button to purchase ILSTC18010 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ILSTC18010?
You can download the ILSTC18010 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ILSTC18010?
C&K COMPONENTS
