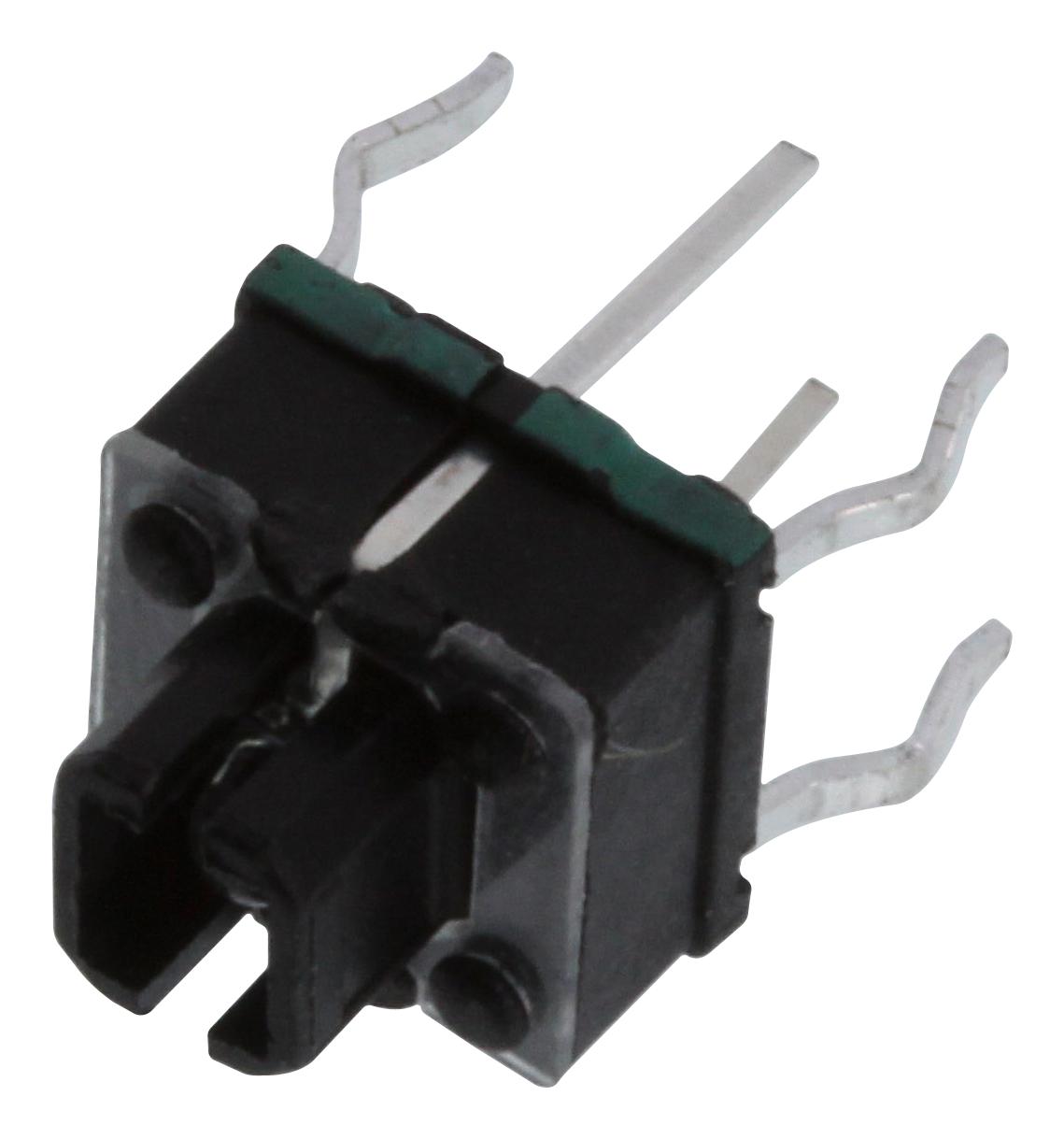

C&K COMPONENTS ILSTC18060 LED tactile switch
The ILS Series Integrated LED Tactile Switch offers compact design with adjustable height options, high durability, and multiple LED color choices including red, yellow, green, blue, and white. Designed for consumer electronics, health monitoring devices, and audio/video controls, it features a travel of 0.25 mm, operating life of 100,000 cycles, and a rated voltage of 30VDC. Its robust construction ensures reliable performance across temperature ranges from -40°C to +85°C, with UL and CSA certifications supporting safety and quality standards. Easy to assemble with customizable options to meet diverse application needs.
C&K COMPONENTS ILSTC18060 LED tactile switch Specifications:
- Travel: 0.25 mm ± 0.1 mm
- Operating Life: 100,000 cycles
- Rated Voltage: 30VDC
- Rated Current: 100mA max.
- Insulation Resistance: 100MΩ min.
- Dielectric Withstanding Voltage: 250VAC for 1 min
- Bounce Time: 5ms max.
- Initial Contact Resistance: 100mΩ max.
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- LED Colors: Red, Yellow/Green, Blue, White, Green
- LED Forward Voltage: 2.3V to 3.6V depending on color
- LED Power Dissipation: 18-120mW depending on color
- Dimensions: Height options of 7.00mm, 7.20mm, 8.50mm
- Actuation Force: 180gf or 250gf
Buy the CK Switches Series ILS Integrated LED Tactile Switch: ILSTC18060
Purchase CK Switches series ILS LED tactile switch online now to benefit from reliable performance, versatile LED color options, and high thermomechanical durability. Perfect for consumer electronics, health devices, and control panels, this switch offers 0.25 mm travel, 100,000 cycle lifespan, and comprehensive electrical ratings. Its compact design and customizable height and actuation force make it suitable for various applications. Enjoy fast, secure online ordering and quick delivery to enhance your electronic product designs with proven quality and exceptional longevity.
Get CK Switches ILS Series ILSTC18060 today—built for precise actuation and long-lasting durability in electronic controls.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ILSTC18060?
You can click on the BUY or RFQ button to purchase ILSTC18060 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ILSTC18060?
You can download the ILSTC18060 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ILSTC18060?
C&K COMPONENTS
