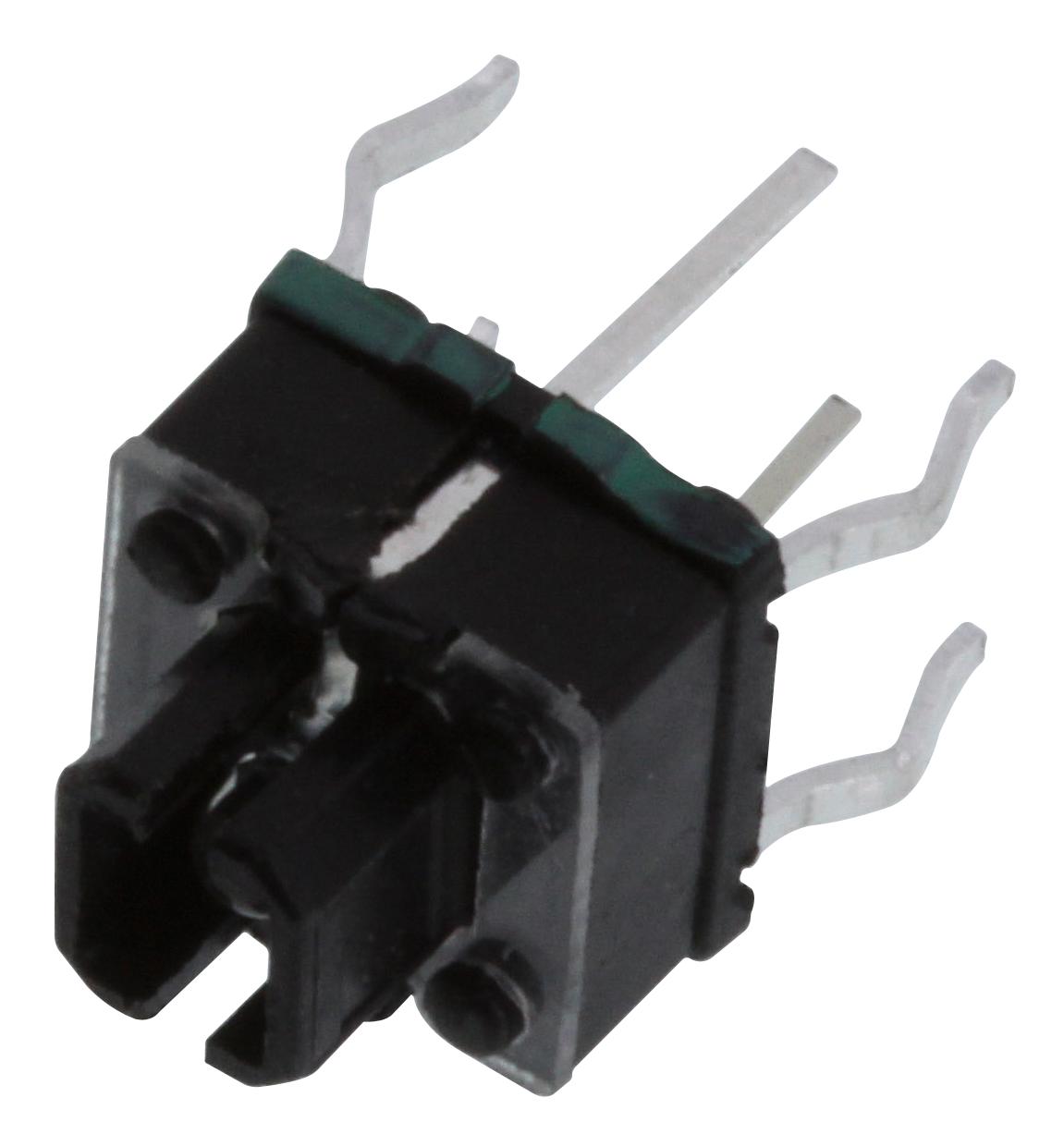

C&K COMPONENTS ILSTC25030 Integrated LED Tact Switch
The ILS Series Integrated LED Tact Switch is a compact, tactile switch with high cycle life, available in various heights and LED colors. It features a travel of 0.25 mm, an operating life of 100,000 cycles, and a maximum ratings of 100mA at 30VDC. Designed for consumer electronics, health monitoring devices, and audio/video control boards, the switch withstands temperatures from -40°C to +85°C and features insulation resistance of 100MΩ minimum. Its durable design makes it ideal for applications requiring reliable tactile feedback and integrated LED illumination.
C&K COMPONENTS ILSTC25030 Integrated LED Tact Switch Specifications:
- Travel: 0.25 mm ± 0.1mm
- Operating life: 100,000 cycles
- Rating: 100mA max. @ 30VDC
- Insulation Resistance: 100MΩ min.
- Dielectric Withstanding Voltage: 250VAC for 1 min
- Bounce Time: 5ms max.
- Initial Contact Resistance: 100mΩ max.
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- LED Power Dissipation: 18-120mW
- Forward Current: 5-30mA
- Forward Voltage: 2.3-3.6V
- Luminous Intensity: 63-140mcd
- Peak Wave Length: 460-644nm
- Viewing Angle: 35°
- Dimensions vary by style; typical height options 7.00mm, 7.20mm, 8.50mm
Buy the Buy CK Switches ILS Series Tact Switch Part Number ILSTC25030 Online
Enhance your electronic designs with CK Switches ILS Series Integrated LED Tact Switch, offering multiple LED colors, compact size, and high durability. Perfect for consumer electronics, health monitoring devices, and control panels, this switch features a travel of 0.25 mm, rated for 100,000 cycles, and operates reliably from -40°C to +85°C. Easy to install with various height options, it ensures long-lasting performance and excellent tactile feedback. Order online now and optimize your device performance with trusted, high-quality tactile switches.
Get CK Switches ILS Series Tact Switch today—built for precision, durability, and reliable tactile feedback in electronic devices.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ILSTC25030?
You can click on the BUY or RFQ button to purchase ILSTC25030 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ILSTC25030?
You can download the ILSTC25030 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ILSTC25030?
C&K COMPONENTS
