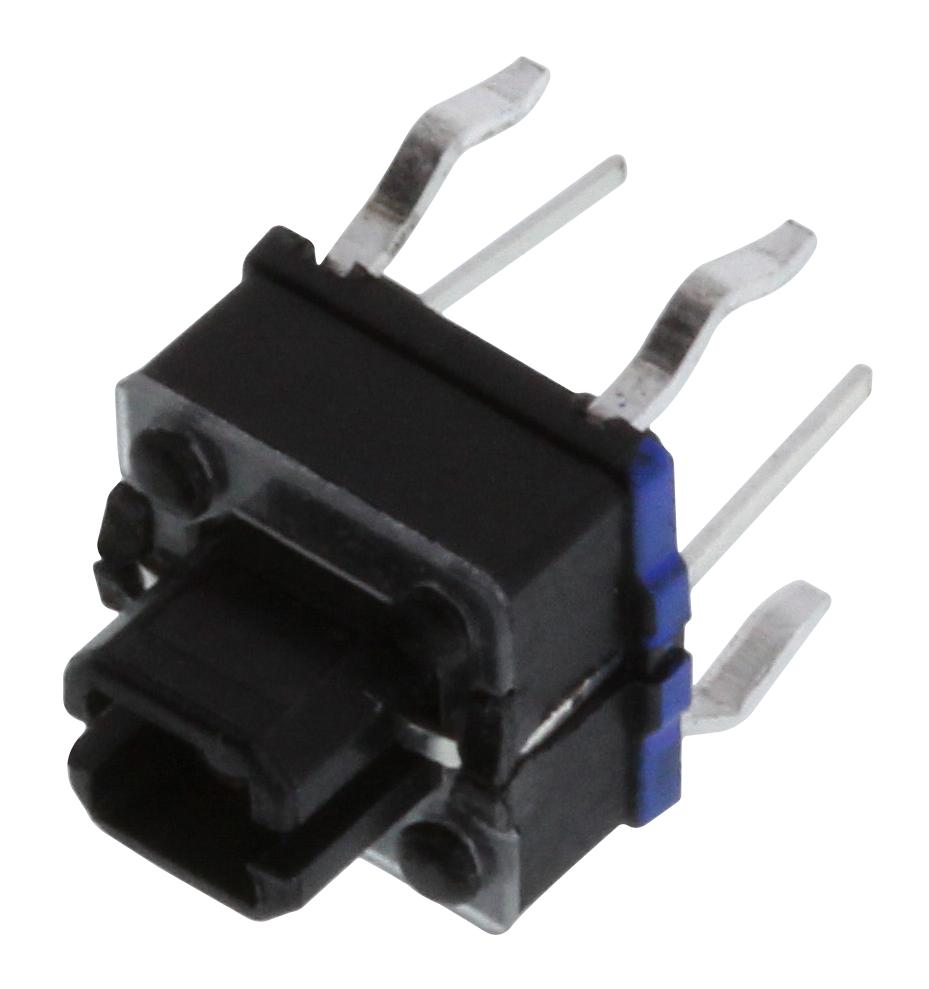

C&K COMPONENTS ILSTC25040 LED Tactile Switch
The integrated LED tactile switch series offers a compact design suitable for consumer electronics, health monitoring, test & measurement, and audio/video control devices. Features include a travel of 0.25 mm, high durability with 100,000 mechanical life cycles, and a maximum rating of 100mA at 30VDC. It includes various LED colors and heights, making it versatile for different applications. Operating temperature ranges from -40°C to +85°C, ensuring reliable performance in diverse environments, with bulk packaging for easy assembly and customization options for different actuation forces and styles.
C&K COMPONENTS ILSTC25040 LED Tactile Switch Specifications:
- Travel: 0.25 mm ± 0.1mm
- Mechanical Operating Life: 100,000 cycles
- Electrical Rating: 100mA max. @ 30VDC
- Insulation Resistance: 100MΩ min.
- Dielectric Withstanding Voltage: 250VAC for 1 min
- Bounce Time: ON/OFF 5ms max.
- Initial Contact Resistance: 100mΩ max.
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- LED Colors: Red, Yellow/Green, Blue, White, Green
- LED Power Dissipation: 18-120mW
- Forward Current: 5-30mA
- Forward Voltage: Max. 2.6V for Red, Max. 3.6V for White
- Luminous Intensity: 63-140mcd
- Peak Wave Length: 460-644nm
- Viewing Angle: 35°
- Dimensions vary by style: Heights 7.00mm, 7.20mm, 8.50mm
Buy the CKSwitches ILSTC25040 – Reliable LED Tactile Switch for Industrial Applications
Order the LED tactile switch series online today to elevate your electronic devices with reliable, high-performance switching solutions. With multiple LED color options, various heights, and a lifespan of 100,000 cycles, these switches are perfect for consumer electronics, health monitoring devices, and measurement equipment. Enjoy easy customization, bulk packaging, and dependable operation within a temperature range of -40°C to +85°C. Ensure your project’s success by choosing our high-quality, versatile tactile switches for seamless integration and enhanced functionality.
Buy CKSwitches ILSTC25040 now and experience unmatched reliability and performance for your electronic control needs with customizable options.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ILSTC25040?
You can click on the BUY or RFQ button to purchase ILSTC25040 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ILSTC25040?
You can download the ILSTC25040 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ILSTC25040?
C&K COMPONENTS
