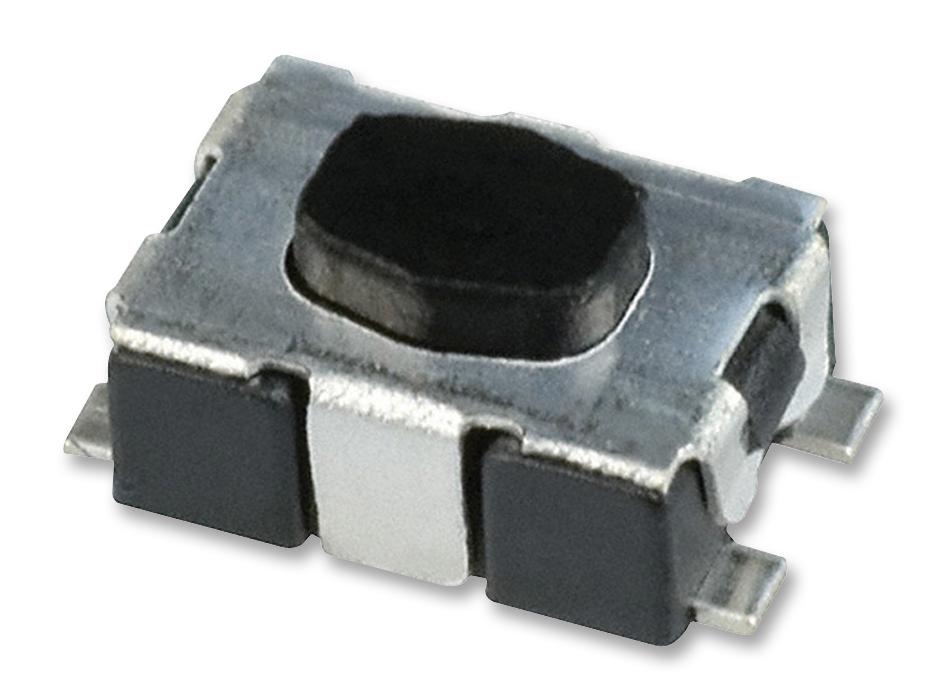

C&K COMPONENTS KMR241GULCLFS Microminiature Tactile Switch
The KMR 2 Series is a microminiature SMT tactile switch designed for PCB mounting with a small footprint and high reliability. It offers four actuation forces, excellent tactile feedback, and ultra low current capabilities, making it ideal for automotive, industrial electronics, and medical equipment applications. This switch features a momentary action with a single SPST normally open contact arrangement, gullwing terminals for surface mounting, and robust construction capable of withstanding temperatures from -40°C to 85°C or up to 125°C with ULC versions. Its compact design ensures precise actuation in limited spaces, with high contact resistance and dielectric strength, suitable for various electronic systems requiring dependable switching performance.
C&K COMPONENTS KMR241GULCLFS Microminiature Tactile Switch Specifications:
- Function: momentary action
- Contact arrangement: 1 make contact = SPST, N.O.
- Terminals: gullwing type for SMT
- Max power: 1VA (silver), 0.2VA (gold)
- Max voltage: 32 VDC
- Min voltage: 20 mVDC
- Max current: 50 mA (silver), 10 mA (gold)
- Operating temperature: -40°C to 85°C, ULC versions up to 125°C
- Mechanical life: 200,000 cycles
- Contact resistance: 0.20 mΩ
- Dielectric strength: 250 Vrms
- Soldering: lead-free reflow compatible
- Height: 21.9 mm
- Actuation force options: 1.2N, 2N, 3N, 4N
- Grounding option: ground pin or no ground pin
- Material: silver or gold plating, lead-free compatible
- Packaging: reel of 7,000 pieces, external diameter 330 mm
Buy the Buy Switch Co KMR241GULCLFS Part Number KMR241GULCLFS Online
Order the KMR 2 Series microminiature SMT tactile switch online today to ensure precise actuation in your electronic projects. With a small footprint, excellent tactile feedback, and ultra low current capabilities, this switch is perfect for automotive, industrial, and medical devices demanding high reliability. Its robust design offers a long mechanical life of 200,000 cycles, high dielectric strength, and a range of actuation forces to suit various applications. Easy to install with gullwing terminals and lead-free compliance, it guarantees exceptional performance and durability for your electronics needs.
Buy Switch Co KMR241GULCLFS now and experience unmatched reliability and performance in compact tactile switching solutions.
Frequently Asked Questions
Where can I buy C&K COMPONENTS KMR241GULCLFS?
You can click on the BUY or RFQ button to purchase KMR241GULCLFS from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part KMR241GULCLFS?
You can download the KMR241GULCLFS datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of KMR241GULCLFS?
C&K COMPONENTS
