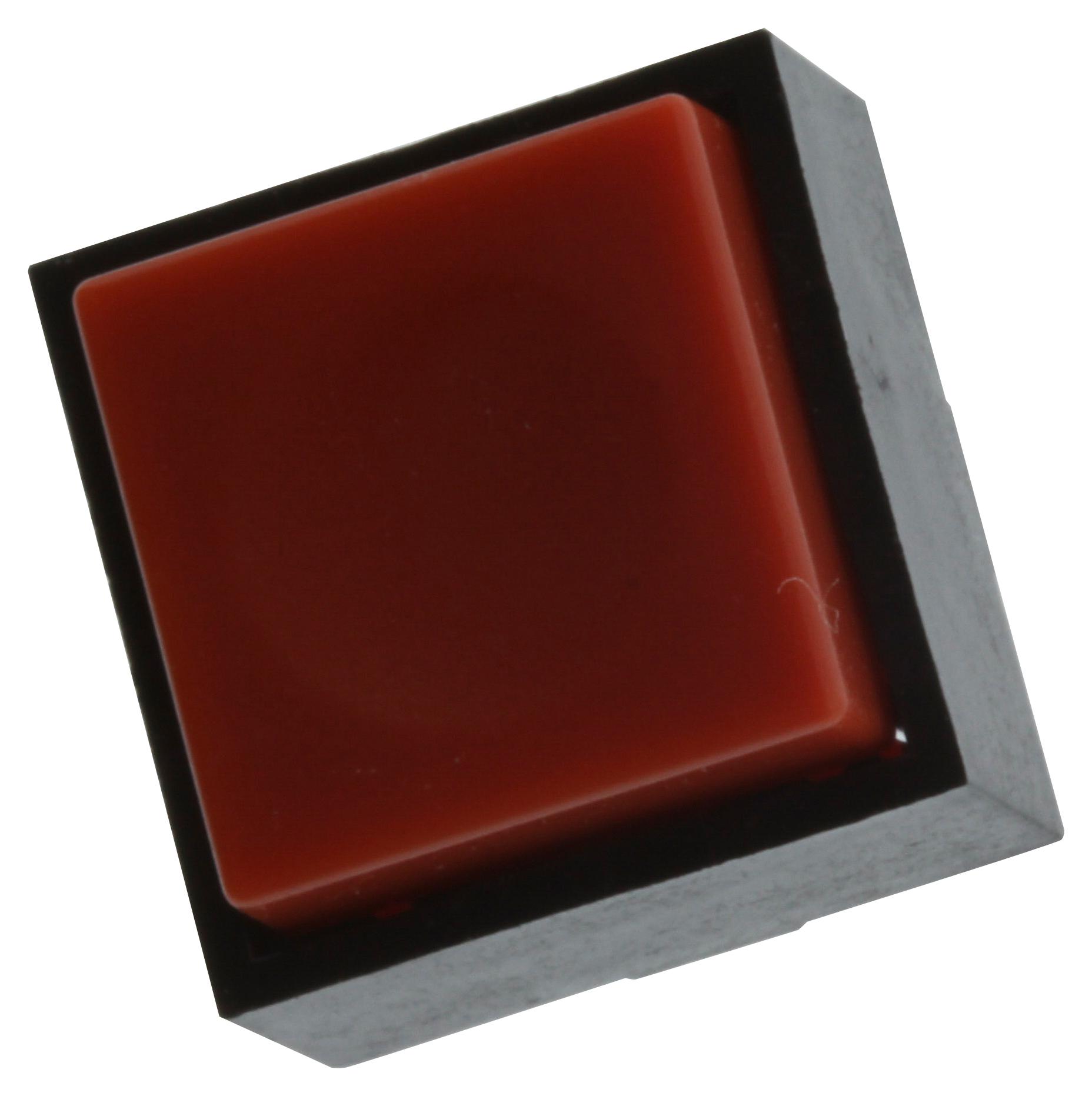

C&K COMPONENTS KS11R23CQD Single Pole Key Switch
Single pole key switches designed for versatile industrial and telecommunications applications, the product features positive tactile feedback, multiple cap colors, and robust construction. Compliant with RoHS standards, these SPST and SPDT switches have a contact rating of 25mA at 50V AC/DC, with 100,000 actuations lifespan. Made with durable materials including glass-filled nylon and stainless steel, they are suitable for -30°C to 65°C environments. Customization options include cap color, contact material, and mounting style, ensuring tailored solutions for various operational needs.
C&K COMPONENTS KS11R23CQD Single Pole Key Switch Specifications:
- Contact Rating: 25mA @ 50V AC/DC
- Electrical Life: 100,000 actuations
- Contact Resistance: Below 100 mΩ initial @ 2-4 VDC, 100 mA
- Insulation Resistance: 10^9 Ω min
- Dielectric Strength: 1500 Vrms min @ sea level
- Operating Temperature: -30°C to 65°C
- Case Material: Glass filled nylon (UL 94V-0)
- Actuator Material: ABS, matte black finish
- Movable Contact: Stainless steel, silver plated
- Stationary Contacts & Terminals: Copper alloy, silver or gold plated
- Terminal Seal: Epoxy
- Solderability: Per MIL-STD-202F, method 208D or EIA RS-186E, 1 hour steam aging
Buy the Eel Series KS Key Switch: KS11R23CQD
Purchase the Eel Series KS11R23CQD single pole key switch online today and enjoy fast delivery, reliable operation, and customizable options to fit your specific industrial or telecommunications needs. Designed with durable materials and rated for 25mA at 50V, these switches deliver precise tactile feedback and long-lasting performance in demanding environments. Whether you need a switch with silver or gold contact plating, or custom cap colors, our online store provides an easy and secure way to acquire high-quality switching solutions that ensure operational safety and efficiency.
Buy Eel Series KS11R23CQD key switches now and experience unmatched reliability and performance with customizable features for industrial applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS KS11R23CQD?
You can click on the BUY or RFQ button to purchase KS11R23CQD from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part KS11R23CQD?
You can download the KS11R23CQD datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of KS11R23CQD?
C&K COMPONENTS
