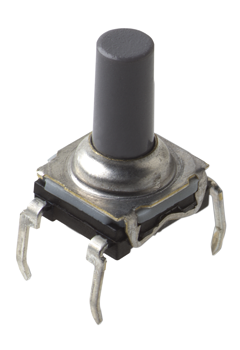

C&K COMPONENTS KSA1M531LFT Sealed Tact Switch
The C&K COMPONENTS KSA & KSL Series Sealed Tact Switches are versatile components designed for a wide range of applications, including automotive, industrial, and telecommunication networks. These switches offer a robust design with features like cambered terminals for self-retention and IP60 sealing for environmental protection. They are available with various actuation forces, termination lengths, and corrosion protection options to meet specific application requirements. The easy build-a-switch concept allows for customization, enabling users to mix and match options to create a switch tailored to their needs. Please consult with a sales representative for non-standard configurations or contractual specifications.
C&K COMPONENTS KSA1M531LFT Sealed Tact Switch Specifications:
- Contact Arrangement: SPST, N.O.
- Double Overmolding on Terminal Sealing: IP60
- Terminals: PC pins, ground pin optional
- Actuation Force: 1.4 ± 0.4 N
- Operating Life: 100,000 - 1,000,000 operations
- Travel to Make: 0.5 ± 0.2
- Maximum Power: 1 VA
- Maximum Voltage: 32 VDC
- Minimum Voltage: 20 mV
- Maximum Current: 50 mA
- Minimum Current: 1 mA
- Dielectric Strength: 250 Vrms
- Contact Resistance: ≤100m Ω
- Insulation Resistance (100 V): ≥109Ω
- Bounce Time: ≤1 ms
- Operating Temperature: -40˚C to 85˚C
- Storage Temperature: -40˚C to 85˚C
Buy the KSA1M531LFT C&K COMPONENTS Sealed Tact Switch | myMectronic
Purchase the C&K COMPONENTS KSA1M531LFT Sealed Tact Switch securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS KSA1M531LFT?
You can click on the BUY or RFQ button to purchase KSA1M531LFT from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part KSA1M531LFT?
You can download the KSA1M531LFT datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of KSA1M531LFT?
C&K COMPONENTS
