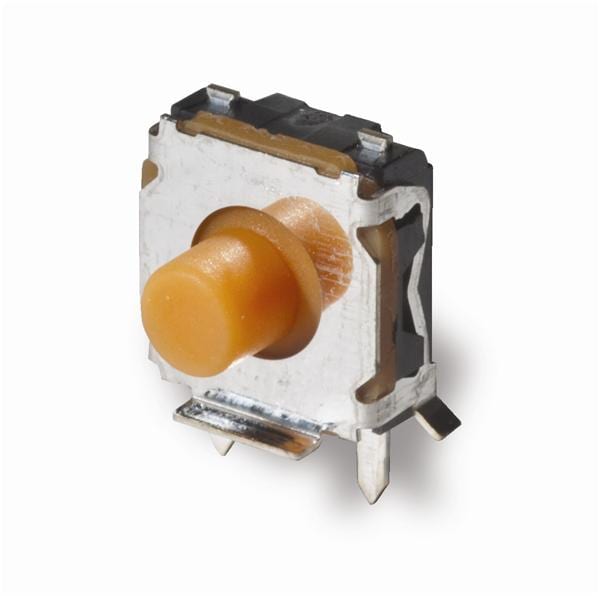

C&K COMPONENTS KSC441V270SHSPDELTALFS Sealed Tact Switch
The C&K COMPONENTS KSC series sealed tactile switches are designed for demanding applications requiring a positive tactile feel and reliable performance. These switches offer IP67 protection against dust and water ingress, making them suitable for automotive, medical, industrial, and network infrastructure environments. They are available with J or G terminations for surface mount technology (SMT) assembly and various heights to accommodate different design requirements. The switches are compatible with standard buttons and offer a range of electrical specifications, including low current options for specific applications. Contact customer service for contractual specification packages for applications requiring specific quality or safety standards.
C&K COMPONENTS KSC441V270SHSPDELTALFS Sealed Tact Switch Specifications:
- operating_temperature: -40°C to 85°C
- storage_temperature: -55°C to 85°C
- maximum_power: 1 VA
- maximum_voltage: 32 VDC
- minimum_voltage: 20 mV
- maximum_current: 50 mA
- minimum_current: 1 mA
- contact_arrangement: 1 make contact = SPST, N.O.
- sealing: IP67
- dielectric_strength: ≥ 250 Vrms
- contact_resistance: ≤ 100mΩ
- insulation_resistance: ≥ 10M Ω
- bounce_time: ≤ 1 ms
- termination_types: J bend & Gullwing type
- operating_force: 1.6±0.6 N
- travel: 0.3±0.2 mm
- packaging: Tape and Reel (2,000 pieces)
