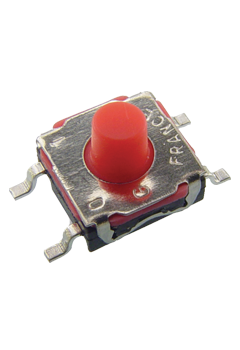

C&K COMPONENTS KSC4D1J50SHLFS Sealed Tact Switch
The KSC Series sealed tact switches are SMT components designed for reliable, IP67-rated waterproof operation, suitable for industrial electronics, automotive, medical instruments, and network infrastructure. They feature positive tactile feedback, multiple actuator heights, and both silver and gold contact options, offering lifespans of up to 300,000 cycles. These switches support soldering via wave or reflow processes, with operating temperatures from -40°C to 85°C (silver) and -40°C to 125°C (gold). Available in various configurations, they ensure consistent performance and durability in harsh environments.
C&K COMPONENTS KSC4D1J50SHLFS Sealed Tact Switch Specifications:
- Sealing: IP67 (except KSC5 with IP50)
- Contact Arrangement: 1 make contact, SPST, N.O.
- Maximum Voltage: 32 VDC
- Maximum Power: 1 VA
- Maximum Current: 50 mA
- Minimum Current: 1 mA
- Dielectric Strength: > 250 Vrms
- Contact Resistance: < 100 mΩ
- Insulation Resistance: > 10 MΩ at 100 V
- Bounce Time: < 1 ms
- Operating Temperature: -40°C to 85°C (silver), -40°C to 125°C (gold)
- Storage Temperature: -55°C to 85°C (silver), -55°C to 125°C (gold)
- Soldering: Suitable for wave and reflow soldering per IEC 61760-1
- Dimensions: Various actuator heights from 2.5 mm to 7.7 mm, external diameters 12 mm or 16 mm
- Contact Material: Silver or Gold plated
- Terminals: J bend or Gullwing
- Mechanical Life: Up to 300,000 cycles
Buy the Buy Switches Industry Components Part Number KSC4D1J50SHLFS Online
Secure your project with the KSC Series sealed tact switch, offering IP67 protection and positive tactile feedback ideal for automation, medical, and industrial electronics. Designed for SMT assembly, these switches support soldering via wave or reflow techniques, ensuring high durability in demanding conditions. Available in multiple actuator heights and contact materials, they provide up to 300,000 switching cycles. Purchase online now to ensure reliable performance in applications requiring waterproof, vibration-resistant, and long-lasting switches for your electronics systems.
Buy Switches KSC4D1J50SHLFS now and experience unmatched reliability and performance in harsh environments and industrial applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS KSC4D1J50SHLFS?
You can click on the BUY or RFQ button to purchase KSC4D1J50SHLFS from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part KSC4D1J50SHLFS?
You can download the KSC4D1J50SHLFS datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of KSC4D1J50SHLFS?
C&K COMPONENTS
