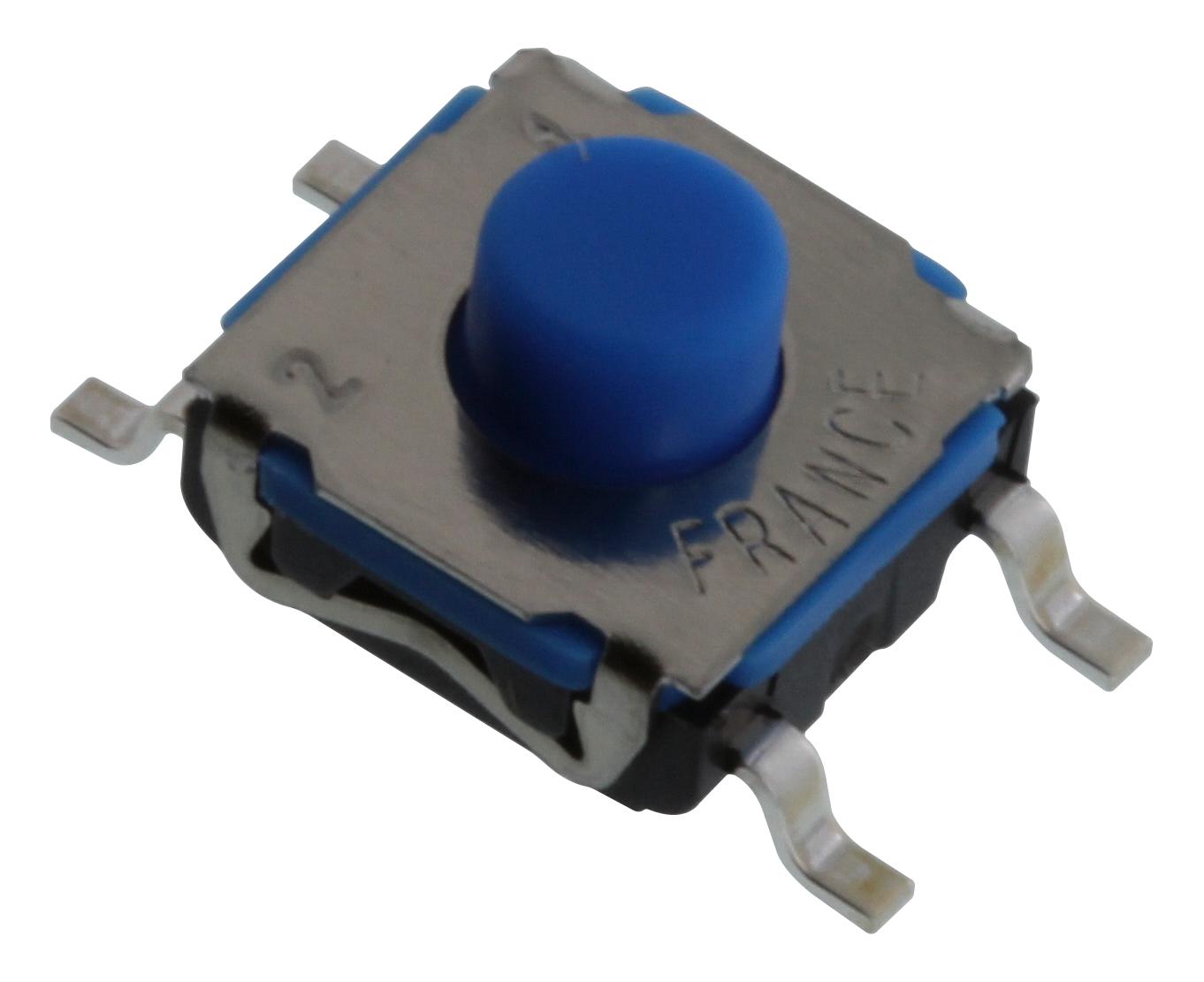

C&K COMPONENTS KSC721GLFS Sealed Tact Switch
This high-reliability sealed tact switch features a compact design with IP67 sealing, ideal for automotive, medical, and industrial applications. It offers multiple actuation forces from 1.5 N to 4 N, with silver or gold contact options, and supports surface-mount and through-hole mounting. Its robust construction ensures durability for over 300,000 cycles under demanding conditions, with a wide operating temperature range of -40°C to +85°C. Suitable for space-constrained designs requiring excellent tactile feedback, long life, and precise actuation.
C&K COMPONENTS KSC721GLFS Sealed Tact Switch Specifications:
- Function: Momentary action
- Contact arrangement: SPST, N.O.
- Contact Material: Silver or Gold
- Sealing: IP67 (some variants IP60/IP54/IP50)
- Actuation Force: 1.5 N, 2 N, 3 N, 4 N
- Travel: 0.15–0.52 mm depending on model
- Operating temperature: -40°C to +85°C (Silver), -40°C to +125°C (Gold)
- Mechanical life: Over 300,000 cycles
- Electrical rating: Max 1 VA, 32 VDC, 50 mA
- Contact resistance: < 100 mΩ
- Insulation resistance: > 100 MΩ
- Dielectric strength: > 250 Vrms (50Hz, 1 min)
- Bounce time: < 1 ms
- Soldering: Compatible with lead free reflow (IEC 61760-1), no washing required
- Packaging: Reels of 900–3,000 pieces, external diameter 330–380 mm, depending on model
Buy the Buy CKSwitches Sealed Tact Switch Part Number KSC721GLFS Online
Purchase your CKSwitches KSC721GLFS sealed tact switch online now. With IP67 sealing, multiple actuation forces, and high cycle durability, it is perfect for automotive, medical, and industrial applications. Compact size with surface-mount and through-hole options makes integration easy for space-constrained designs. Ensure reliable tactile feedback and extended lifespan of over 300,000 cycles, compatible with lead-free reflow soldering, and available in bulk pack of 900 pieces for fast, convenient procurement.
Order your CKSwitches Sealed Tact Switch KSC721GLFS today and ensure long-lasting performance in demanding environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS KSC721GLFS?
You can click on the BUY or RFQ button to purchase KSC721GLFS from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part KSC721GLFS?
You can download the KSC721GLFS datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of KSC721GLFS?
C&K COMPONENTS
