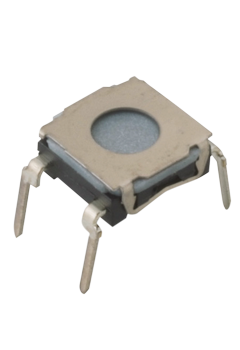

C&K COMPONENTS KSFI0M41270SHLFT Soft Actuated Tact Switch
The C&K COMPONENTS KSFI0M41270SHLFT is a soft actuated tact switch ideal for a variety of applications including low profile keyboards, automotive interfaces, and industrial control systems. This momentary action switch features a sealed front end and top/side actuation. It is designed for general electronic devices and offers a travel of 0.75mm with an operating force of 3.2 ± 0.8N. For critical reliability and safety applications, consulting with a sales representative is recommended to ensure proper integration and usage.
C&K COMPONENTS KSFI0M41270SHLFT Soft Actuated Tact Switch Specifications:
- Function: momentary action
- Contact Arrangement: 1 make contact = SPST, N.O.
- Terminals: THT pins
- Operating Life: 100,000 operations
- Travel: 0.75 ± 0.25 mm
- Overload Resistance: 40N
- Sealing: IP60 or IP67
- Maximum Power: 1 VA
- Maximum Voltage: 32 VDC
- Minimum Voltage: 20 mV
- Maximum Current: 50 mA
- Minimum Current: 1 mA
- Dielectric Strength: > 250 Vrms
- Contact Resistance: < 100 m Ω
- Insulation Resistance: > 10[9] Ω
- Bounce Time: < 1 ms
- Operating Temperature: -40˚C to 85˚C
- Storage Temperature: -55˚C to 85˚C
