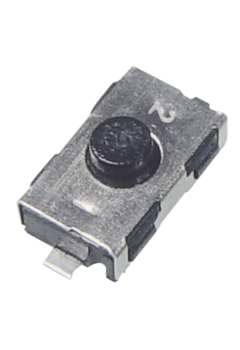

C&K COMPONENTS KSR214GLFG Subminiature Tact Switch
The C&K COMPONENTS KSR series offers subminiature tact switches suitable for a wide range of applications including automotive, medical equipment, industrial electronics, and smart meters. These switches provide momentary action with various actuation forces and termination options. They are RoHS compliant and designed for surface mount technology (SMT) with gullwing terminations. The switches are available in normally open (N.O.) and normally closed (N.C.) configurations, catering to diverse circuit requirements. They are delivered on continuous tape in reels of 2,500 pieces, simplifying automated assembly processes.
C&K COMPONENTS KSR214GLFG Subminiature Tact Switch Specifications:
- Function: momentary action
- Contact Arrangement: Normally Open
- Terminals: Gullwing type for SMT
- Operating Force: 1.5-2.2 N (185-225 grams)
- Operating Life: 100,000 operations
- Travel: 0.25-0.5 mm
- Overload: 20 Newtons
- Maximum Power: 1 VA
- Maximum Voltage: 32 VDC
- Minimum Voltage: 20 mV
- Maximum Current DC: 50 mA
- Minimum Current DC: 1 mA
- Contact Resistance: ≤ 100 mΩ
- Insulation Resistance: 1G Ω (between terminals)
- Bounce Time: 1 ms max.
- Operating Temperature: -40˚C to 85˚C / -40˚C to 125˚C
- Storage Temperature: -55˚C to 85˚C / -55˚C to 125˚C
- Soldering: Compatible with lead free reflow soldering process
