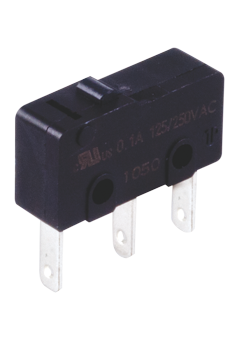

C&K COMPONENTS LCA06150A05SC Snap-Acting Switch
The C&K COMPONENTS LCA series subminiature snap-acting switches are designed for applications requiring a compact, reliable switching solution. These switches boast a long electrical life and high capacity, along with quick connect, solder, and PC terminals for versatile mounting options. They are commonly used in motorized equipment, sump pumps, and thermostatic controls. Constructed with thermoplastic polyester housing, copper alloy pivot and contacts, and stainless steel actuator levers, these switches offer durability and consistent performance. RoHS compliant, the LCA series provides a dependable solution for a wide range of industrial and commercial applications.
C&K COMPONENTS LCA06150A05SC Snap-Acting Switch Specifications:
- Contact Rating: From low level to 10.1 AMPS @ 125/250 V AC
- Electrical Life: see chart
- Mechanical Life: 300,000 cycles
- Insulation Resistance: 100 M ohm min.
- Dielectric Strength: 1,500 Vrms min. @ sea level
- Operating Temperature: –40ºC to +125ºC
- Operating Force: 150 grams at actuator button
- Mounting: 2-56 screws, torque 2.3 in/lbs max.
- Switch Housing: Thermoplastic polyester
- Actuator Button: Thermoplastic polyester
- Spring: Copper alloy
- Pivot: Copper alloy
- Movable Contacts: Silver alloy
- Stationary Contacts: Silver alloy
- Terminals: Copper alloy
- Actuator Lever: Stainless steel
