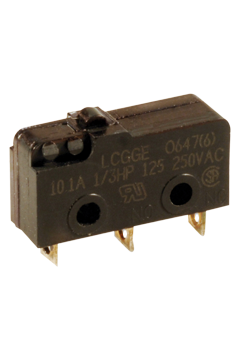

C&K COMPONENTS LCGDL9T10EC Snap-Acting Precision Switch
The C&K COMPONENTS LCGDL9T10EC is a subminiature precision snap-acting switch offering a compact design and robust performance. It's engineered for long life and high electrical capacity, providing reliable switching in various applications. The switch offers quick connect options for easy integration and a wide selection of actuator styles to suit diverse design requirements. Typical applications include motorized equipment, sump pumps, and thermostatic controls. Constructed with thermoplastic polyester or PTS housing, copper alloy pivot and terminals, and fine silver or gold-plated contacts, this switch ensures reliable operation and durability.
C&K COMPONENTS LCGDL9T10EC Snap-Acting Precision Switch Specifications:
- Contact Rating: From low level to 10.1 AMPS @ 250 V AC
- Electrical Life: 100,000 cycles
- Insulation Resistance: 1,000 M ohm min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: -17ºF to 185ºF (-25ºC to 85ºC)
- Operating Force: From 142 to 170 grams at actuator button
- Mounting: 2-56 screws, torque 2.3 in/lbs max.
- Switch Housing: Thermoplastic polyester or high temperature thermoplastic (PTS) (UL 94V-0)
- Actuator Button: Thermoplastic polyester (UL 94V-0)
- Spring: Copper alloy
- Pivot: Copper alloy
- Movable Contacts: Fine silver for ratings greater than 1 AMP @ 125 V AC; Fine silver with 24K gold plate for 1 AMP @ 125 V AC or less
- Stationary Contacts: Fine silver welded on copper alloy for ratings greater than 1 AMP @ 125 V AC; Gold alloy welded on copper alloy for ratings less than 1 AMP @ 125 V AC
- Terminals: Copper alloy
- Terminal Seal: Epoxy
