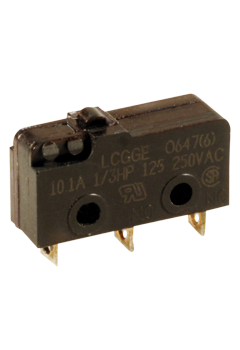

C&K COMPONENTS LCGGF5A10ECU Snap-Acting Precision Switch
The C&K COMPONENTS LCGF5A10ECU is a subminiature precision snap-acting switch offering a compact design and robust performance. It's engineered for long life and high electrical capacity, providing reliable switching functionality. The switch's quick connect options and versatile actuator styles make it adaptable to various mounting configurations. Commonly used in motorized equipment, sump pumps, and thermostatic controls, the LCGF5A10ECU delivers dependable operation in demanding industrial environments. Its thermoplastic polyester or PTS housing (UL 94V-0) ensures durability and safety.
C&K COMPONENTS LCGGF5A10ECU Snap-Acting Precision Switch Specifications:
- Contact Rating: From low level to 10.1 AMPS @ 250 V AC
- Electrical Life: 100,000 cycles
- Insulation Resistance: 1,000 M ohm min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: -17ºF to 185ºF (-25ºC to 85ºC)
- Operating Force: From 142 to 170 grams at actuator button
- Mounting: 2-56 screws, torque 2.3 in/lbs max.
- Switch Housing: Thermoplastic polyester or high temperature thermoplastic (PTS) (UL 94V-0)
- Actuator Button: Thermoplastic polyester (UL 94V-0)
- Spring: Copper alloy
- Pivot: Copper alloy
- Movable Contacts: Fine silver for ratings greater than 1 AMP @ 125 V AC; Fine silver with 24K gold plate for 1 AMP @ 125 V AC or less
- Stationary Contacts: Fine silver welded on copper alloy for ratings greater than 1 AMP @ 125 V AC; Gold alloy welded on copper alloy for ratings less than 1 AMP @ 125 V AC
- Terminals: Copper alloy
- Terminal Seal: Epoxy
Buy the LCGF5A10ECU C&K COMPONENTS Snap-Acting Precision Switch | myMectronic
Purchase the C&K COMPONENTS LCGF5A10ECU securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS LCGGF5A10ECU?
You can click on the BUY or RFQ button to purchase LCGGF5A10ECU from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part LCGGF5A10ECU?
You can download the LCGGF5A10ECU datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of LCGGF5A10ECU?
C&K COMPONENTS
