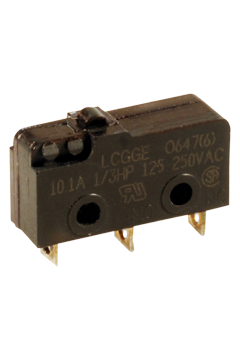

C&K COMPONENTS LCGGL9P00EYE Precision Snap-Acting Switch
The C&K COMPONENTS LCGGL9P00EYE is a subminiature precision snap-acting switch designed for applications requiring reliable and compact switching solutions. It boasts a long electrical life, quick connect options, and a wide range of actuator styles to accommodate diverse needs. Constructed with thermoplastic polyester or high-temperature thermoplastic housing and fine silver or gold-plated contacts, this switch ensures robust performance and reliable contact integrity. Typical applications include motorized equipment, sump pumps, and thermostatic controls.
C&K COMPONENTS LCGGL9P00EYE Precision Snap-Acting Switch Specifications:
- Contact Rating: From low level to 10.1 AMPS @ 250 V AC
- Electrical Life: 100,000 cycles
- Insulation Resistance: 1,000 M ohm min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: -17ºF to 185ºF (-25ºC to 85ºC)
- Operating Force: From 142 to 170 grams at actuator button
- Mounting: 2-56 screws, torque 2.3 in/lbs max.
- Switch Housing: Thermoplastic polyester or high temperature thermoplastic (PTS) (UL 94V-0)
- Actuator Button: Thermoplastic polyester (UL 94V-0)
- Spring: Copper alloy
- Pivot: Copper alloy
- Movable Contacts: Fine silver for ratings greater than 1 AMP @ 125 V AC; Fine silver with 24K gold plate for 1 AMP @ 125 V AC or less
- Stationary Contacts: Fine silver welded on copper alloy for ratings greater than 1 AMP @ 125 V AC; Gold alloy welded on copper alloy for ratings less than 1 AMP @ 125 V AC
- Terminals: Copper alloy
- Terminal Seal: Epoxy
