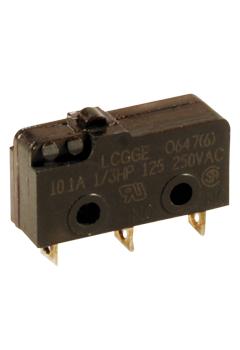

C&K COMPONENTS LCGGX1T25EC Snap-Acting Switch
The C&K COMPONENTS LCGX1T25EC is a subminiature precision snap-acting switch designed for applications requiring a compact and reliable switching solution. It boasts a long electrical life and high electrical capacity, along with quick connect options for versatile mounting. Common applications include motorized equipment, sump pumps, and thermostatic controls. The switch housing is constructed from thermoplastic polyester or high-temperature thermoplastic (PTS) with UL 94V-0 flammability rating, ensuring durability and safety. Contact materials vary depending on the rating, with fine silver or gold-plated contacts available to meet specific current and voltage requirements.
C&K COMPONENTS LCGGX1T25EC Snap-Acting Switch Specifications:
- CONTACT RATING: From low level to 10.1 AMPS @ 250 V AC
- ELECTRICAL LIFE: 100,000 cycles
- INSULATION RESISTANCE: 1,000 M οηµ min.
- DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level
- OPERATING TEMPERATURE: -17ºF to 185ºF (-25ºC to 85ºC)
- OPERATING FORCE: From 142 to 170 grams at actuator button
- MOUNTING: 2-56 screws, torque 2.3 in/lbs max.
- SWITCH HOUSING: Thermoplastic polyester or high temperature thermoplastic (PTS) (UL 94V-0)
- ACTUATOR BUTTON: Thermoplastic polyester (UL 94V-0)
- SPRING: Copper alloy
- PIVOT: Copper alloy
- MOVABLE CONTACTS: Fine silver for ratings greater than 1 AMP @ 125 V AC; Fine silver with 24K gold plate for 1 AMP @ 125 V AC or less
- STATIONARY CONTACTS: Fine silver welded on copper alloy for ratings greater than 1 AMP @ 125 V AC; Gold alloy welded on copper alloy for ratings less than 1 AMP @ 125 V AC
- TERMINALS: Copper alloy
- TERMINAL SEAL: Epoxy
