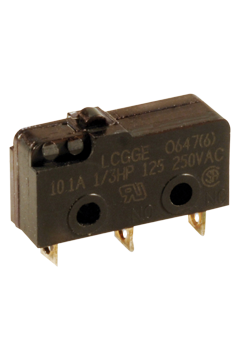

C&K COMPONENTS LCGHX1A10RCE Snap-Acting Switch
The C&K COMPONENTS LCGHX1A10RCE is a subminiature precision snap-acting switch offering a compact design and robust performance. It's engineered for long life and high electrical capacity, making it suitable for a variety of industrial applications. The switch provides quick connect options for easy integration and supports wire lead or PC mounting. With a wide selection of actuator styles, the LCGHX1A10RCE caters to diverse design requirements, commonly used in motorized equipment, sump pumps, and thermostatic controls. Its thermoplastic polyester or PTS housing (UL 94V-0) ensures durability and safety.
C&K COMPONENTS LCGHX1A10RCE Snap-Acting Switch Specifications:
- Contact Rating: From low level to 10.1 AMPS @ 250 V AC
- Electrical Life: 100,000 cycles
- Insulation Resistance: 1,000 M ohm min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: -17ºF to 185ºF (-25ºC to 85ºC)
- Operating Force: From 142 to 170 grams at actuator button
- Mounting: 2-56 screws, torque 2.3 in/lbs max.
- Switch Housing: Thermoplastic polyester or high temperature thermoplastic (PTS) (UL 94V-0)
- Actuator Button: Thermoplastic polyester (UL 94V-0)
- Spring: Copper alloy
- Pivot: Copper alloy
- Movable Contacts: Fine silver for ratings greater than 1 AMP @ 125 V AC; Fine silver with 24K gold plate for 1 AMP @ 125 V AC or less
- Stationary Contacts: Fine silver welded on copper alloy for ratings greater than 1 AMP @ 125 V AC; Gold alloy welded on copper alloy for ratings less than 1 AMP @ 125 V AC
- Terminals: Copper alloy
- Terminal Seal: Epoxy
Buy the LCGHX1A10RCE C&K COMPONENTS Snap-Acting Switch | myMectronic
Purchase the C&K COMPONENTS LCGHX1A10RCE securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS LCGHX1A10RCE?
You can click on the BUY or RFQ button to purchase LCGHX1A10RCE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part LCGHX1A10RCE?
You can download the LCGHX1A10RCE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of LCGHX1A10RCE?
C&K COMPONENTS
