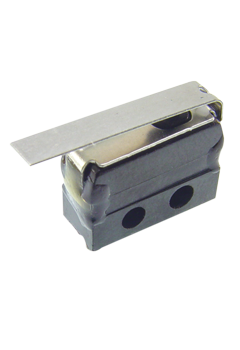

C&K COMPONENTS MMGGD1W0T Subminiature Precision Snap-acting Switch
The C&K COMPONENTS MMGGD1W0T is a subminiature precision snap-acting switch offering low-level and power switching capabilities. Designed for reliability and durability, it boasts a long electrical and mechanical life, enhanced overtravel, and a dependable snap-acting mechanism. Common applications include communication devices and situations where space is limited. The switch utilizes heat-resistant phenolic for the housing and actuator button, beryllium copper for the spring, and fine silver or 24K gold for contact materials, ensuring optimal performance and longevity. Available with various actuator and termination options to suit diverse design requirements.
C&K COMPONENTS MMGGD1W0T Subminiature Precision Snap-acting Switch Specifications:
- Contact Rating: From low level to 7 AMPS @ 250 V AC
- Electrical Life: 100,000 cycles at full rated load
- Insulation Resistance: 1,000 ohm min
- Dielectric Strength: 1,000 V RMS min. @ sea level
- Operating Temperature: -67 F to 275 F (-55 C to 135 C)
- Operating Force: 5 oz. (142 grams) max. at actuator button
- Mounting: 2-56 screws, torque 2 in/lbs max
- Switch Housing: Heat resistant phenolic (UL 94V-0)
- Actuator Button: Heat resistant phenolic (UL 94V-0)
- Spring: Beryllium copper CDA alloy C17200
- Pivot: Brass CDA alloy 260
- Movable Contacts: Fine silver (for ratings > 1 AMP @ 125 V AC), 24K gold (for 1 AMP @ 125 V AC or less)
- Stationary Contacts: Fine silver inlay on copper CDA alloy C10200 (for ratings > 1 AMP @ 125 V AC), 24K gold on copper CDA alloy C10200 (for 1 AMP @ 125 V AC or less)
- Terminals: Copper CDA alloy C18700
- Low Level Condition: 0.4 VA max. @ 20 V AC or DC max
