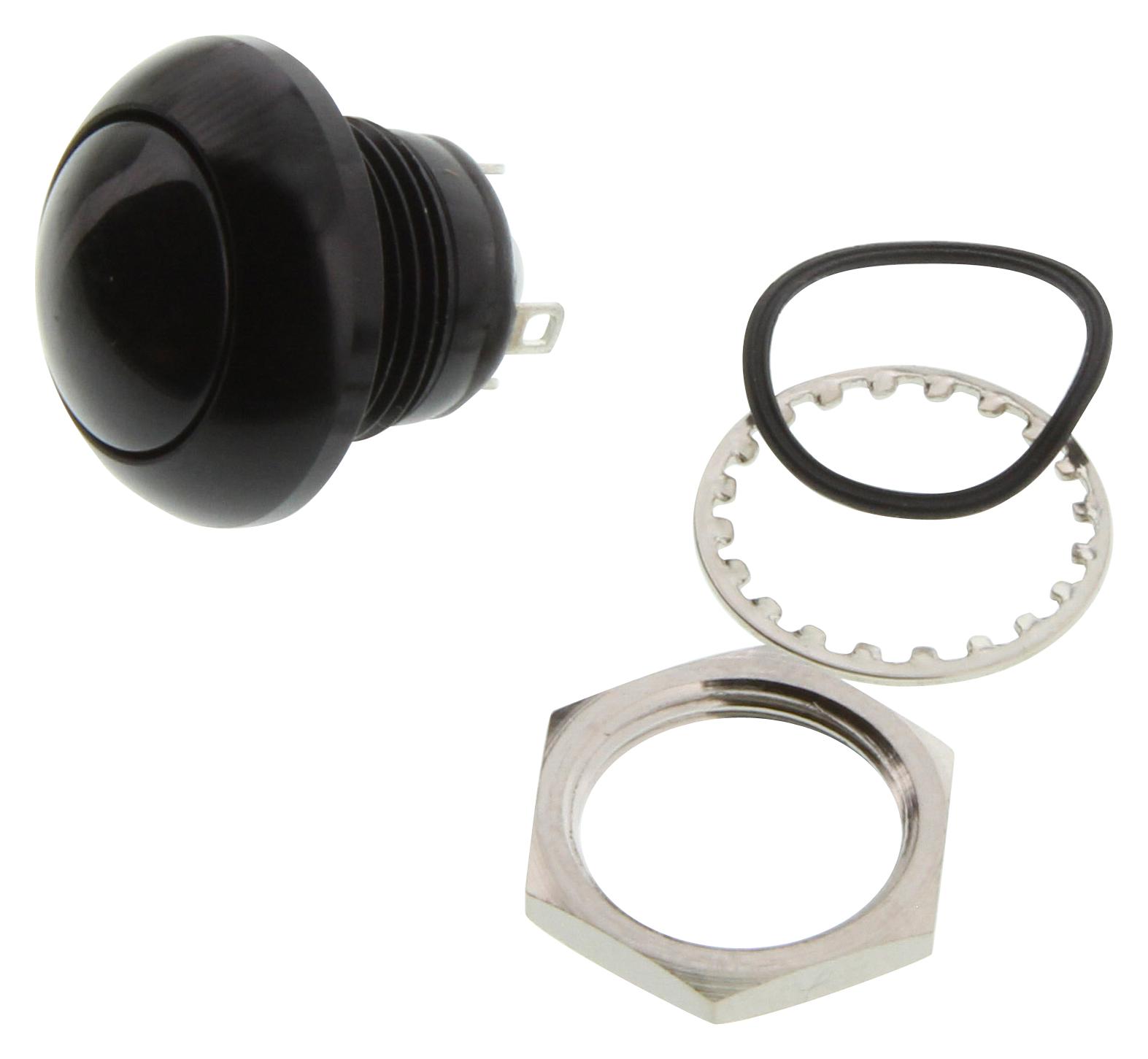

C&K COMPONENTS NP8S2D203QE Sealed Industrial Pushbutton Switch
The NP Series Sealed Industrial Pushbutton Switch is designed for harsh environments, offering IP68 sealing, with a life cycle of 1,000,000 cycles. It features a SPDT double break contact function, suitable for applications requiring a momentary switch with N.O. and N.C. contact arrangement. The switch's housing is made of durable 6061-T6 aluminum, with options for threaded, rear, or slot mounting. It withstands operating forces of 8N, operates within -40°C to +85°C, and is RoHS compliant, making it ideal for industrial, transportation, and off-road applications.
C&K COMPONENTS NP8S2D203QE Sealed Industrial Pushbutton Switch Specifications:
- Function: SPDT Double Break (Form Z) Momentary
- Contact Arrangement: N.O. and N.C.
- Mounting Type: Threaded front/rear, slot mount
- Operating Life: 1,000,000 cycles
- Total Travel: 1.6 + 0.15 mm
- Operating Point: 0.9 + 0.25 mm
- Over Travel: 0.45 mm min.
- Operating Force: 8N + 1.5N
- Vibration: 10-500 Hz 10g Max
- Shock: 50g 11ms sawtooth wave
- Contact Rating: 10mA/5 VDC (gold over silver), 1A/32 VDC resistive, 5A/32 VDC resistive
- Dielectric Strength: 1000 V AC for 1 min
- Insulation Resistance: 1 GΩ @ 500 VDC
- Initial Contact Resistance: 50 mΩ max
- Housing Material: 6061-T6 Aluminum, black or clear anodized
- Base & Cap: PBT
- Actuator & Internal Seal: PBT, Silicone Rubber
- Terminals: Copper with silver nickel inlay, silver plating
- Operating Temperature: -40°C to +85°C
- ESD Protection: 15KV minimum
Buy the CK Switches Series NP Sealed Industrial Pushbutton Switch: NP8S2D203QE
Order the CK Series NP Sealed Industrial Pushbutton Switch online today. Designed for harsh environments, it offers IP68 sealing, 1,000,000 cycle lifespan, and durable aluminum housing. Suitable for industrial and transportation applications, it features SPDT double break contact operation, with multiple mounting options. Easy to install and compliant with RoHS standards, this switch ensures reliable performance and longevity. Enhance your equipment with this high-quality sealed switch designed to withstand extreme conditions.
Get CK Switches NP8S2D203QE today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS NP8S2D203QE?
You can click on the BUY or RFQ button to purchase NP8S2D203QE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part NP8S2D203QE?
You can download the NP8S2D203QE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of NP8S2D203QE?
C&K COMPONENTS
