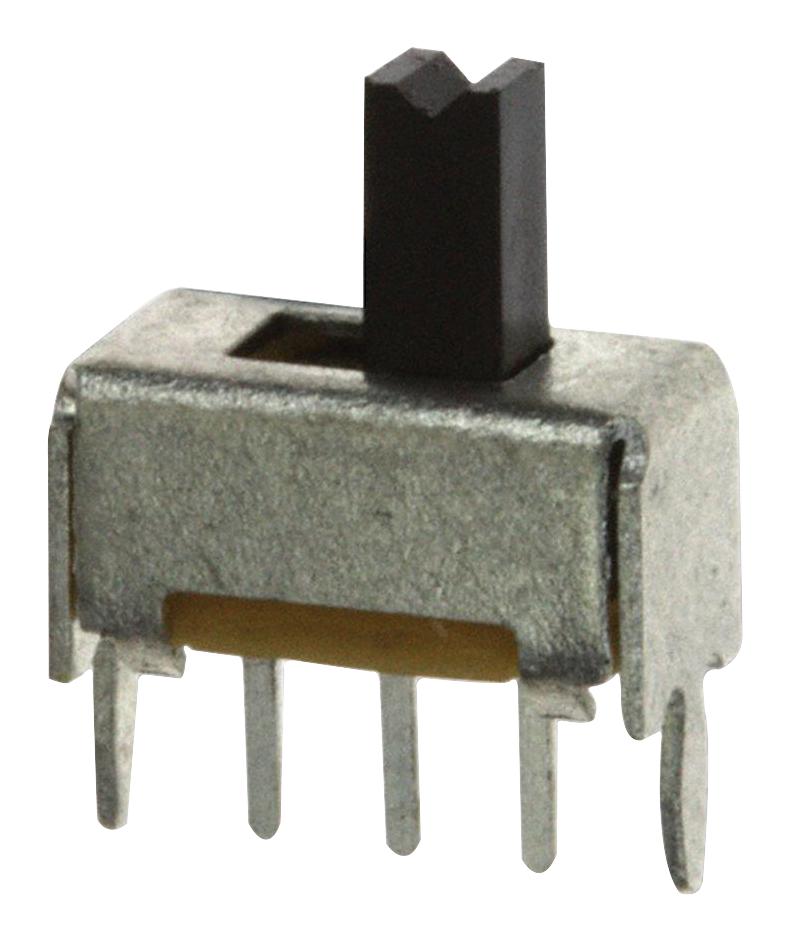

C&K COMPONENTS OS102011MS2QN1C Miniature Slide Switch
The OS102011MS2QN1C is a miniature slide switch designed for precise control in compact electronic devices and industrial systems. It features multiple positions, including non-shorting and shorting options, with a mechanical life of 10,000 cycles. The switch has a contact resistance of 20 mΩ or less, insulation resistance of 100 MΩ at 500 VDC, and a dielectric strength of 500 VAC for 1 minute. With silver-plated copper movable contacts and brass stationary contacts, it operates reliably from -30°C to +70°C. Suitable for PC mounting, it is ideal for consumer electronics, test equipment, and network products.
C&K COMPONENTS OS102011MS2QN1C Miniature Slide Switch Specifications:
- Contact Resistance: 20 mΩ or less
- Mechanical & Electrical Life: 10,000 cycles
- Insulation Resistance: 100 MΩ at 500 VDC
- Dielectric Strength: 500 VAC for 1 minute
- Operating Temperature: -30°C to +70°C
- Movable Contact Material: Copper alloy, silver plated
- Stationary Contacts: Brass, silver plated
- Actuator Material: POM, Black or PA46 for high temperature
- Housing Plate: SPCC Sn plated
- Conformance: RoHS compliant, Halogen free
- Terminals: Brass, silver plated, sealed
- Designed for PC and panel mounting, suitable for consumer products, test equipment, network devices
Buy the E-Cigarette OS102011MS2QN1C – Reliable Micro Switch for Industrial Applications
Purchase the OS102011MS2QN1C switch online today and upgrade your electronic or industrial systems with a highly reliable, RoHS compliant product. Featuring a life cycle of 10,000 cycles, contact resistance below 20 mΩ, and operating temperature range from -30°C to +70°C, this miniature slide switch ensures consistent performance. Its sealed terminals and choice of actuator materials make it ideal for compact electronics, consumer gadgets, and professional test equipment. Order now for fast delivery and seamless integration into your designs.
Buy OS102011MS2QN1C miniature slide switch now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS OS102011MS2QN1C?
You can click on the BUY or RFQ button to purchase OS102011MS2QN1C from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part OS102011MS2QN1C?
You can download the OS102011MS2QN1C datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of OS102011MS2QN1C?
C&K COMPONENTS
