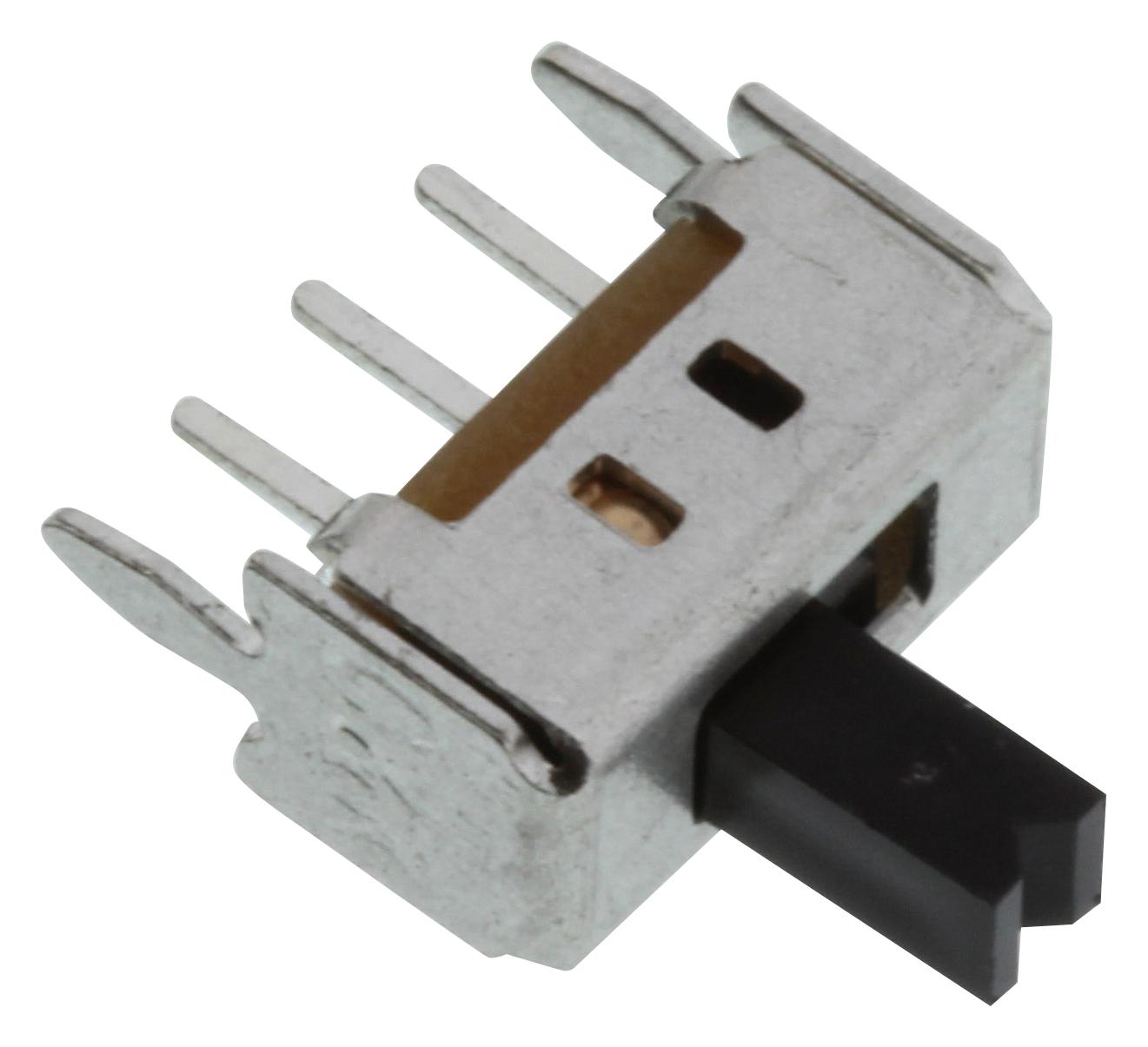

C&K COMPONENTS OS102011MS2QS1 Miniature Slide Switch
Miniature slide switches are versatile, compact electromechanical devices used in various electronic applications, offering non-shorting and shorting contact options. They feature phenolic resin bases with copper alloy and brass contacts, silver plated for durability. Operating temperature ranges from -30°C to +70°C, with a contact resistance of 20 mΩ or less and an electrical life cycle of 10,000 cycles. Suitable for PC mounting, panel mounting, and network products, they comply with RoHS standards and use halogen-free materials, making them ideal for consumer, test, measurement, and industrial applications.
C&K COMPONENTS OS102011MS2QS1 Miniature Slide Switch Specifications:
- Contact Rating: 0.1A @ 12 VDC
- Mechanical & Electrical Life: 10,000 cycles
- Contact Resistance: 20 mΩ or less
- Insulation Resistance: 100 MΩ min at 500 VDC
- Dielectric Strength: 500 VAC for 1 minute
- Movable Contact: Copper alloy, silver plated
- Stationary Contacts: Brass, silver plated
- Operating Temperature: -30°C to +70°C
- Materials: Phenolic resin base, POM or PA46 actuators, SPCC Sn plated housing plate
- Packaging: Bulk terminals: Brass, silver plated
- Sealed terminal design for durability
Buy the Brand OS Series – Reliable Miniature Slide Switches for Industrial Applications
Enhance your electronic designs with OS Series miniature slide switches, offering high durability, RoHS compliance, and versatile mounting options. These compact switches feature phenolic bases, copper alloy and brass contacts, and silver plating for longevity. With a lifecycle of 10,000 cycles and operating temperatures from -30°C to +70°C, they are suitable for consumer, test, measurement, and industrial applications. Easily mounted on PCBs or panels, they meet industry standards for safety and environmental compliance, making them a dependable choice for your project needs.
Buy OS Series miniature slide switches now and experience unmatched reliability and performance in your electronic and industrial projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS OS102011MS2QS1?
You can click on the BUY or RFQ button to purchase OS102011MS2QS1 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part OS102011MS2QS1?
You can download the OS102011MS2QS1 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of OS102011MS2QS1?
C&K COMPONENTS
