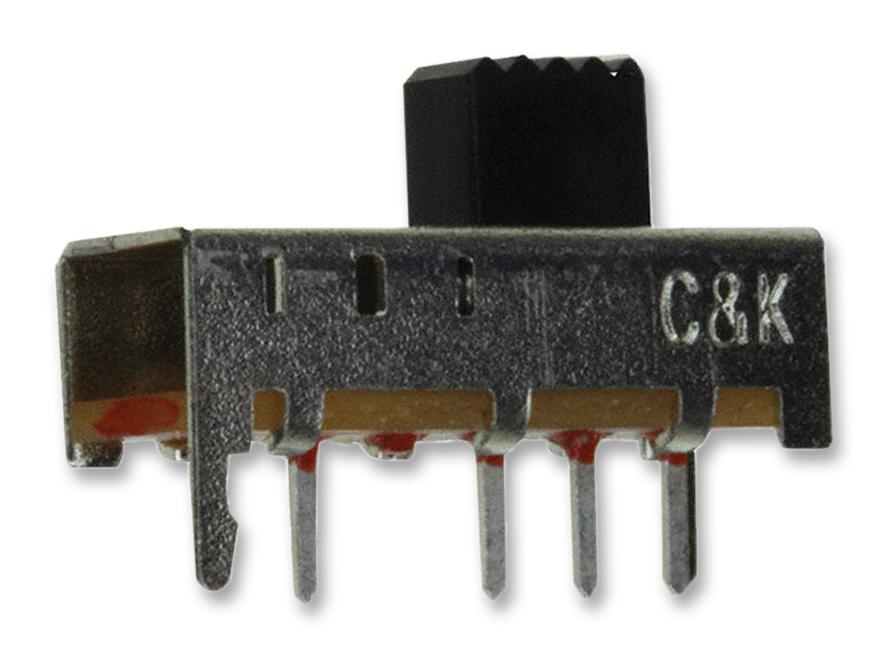

C&K COMPONENTS OS103012MU1QP1 Miniature Slide Switch
The OS Series miniature slide switches are compact, reliable components designed for PCB mounting. They feature various switch functions, including SPST and DPDT configurations, with options for shorting and non-shorting contacts. Made with durable materials like phenolic resin bases and copper alloy contacts, these RoHS-compliant switches operate between -30°C to +70°C. They are suitable for test & measurement equipment, consumer electronics, network products, and computer peripherals, offering versatile actuators, multiple terminal configurations, and sealed terminals for enhanced protection.
C&K COMPONENTS OS103012MU1QP1 Miniature Slide Switch Specifications:
- Base Material: Phenolic resin
- Contact Material: Copper alloy, silver plated or gold plated
- Actuator Material: POM, black
- Operating Temperature: -30°C to +70°C
- Contact Rating: 0.1A to 0.34A @ 12-30 VDC depending on model
- Dielectric Strength: 500 V for 1 minute
- Insulation Resistance: Minimum 100 MΩ at 500 VDC
- Housing Plate: Non-compatible SPCC Sn plated or Nickel plated
- Packaging: Bulk
- Sealed Terminals: Yes
- Switch Function: SPST, DPDT, with shorting/non-shorting options
- RoHS Compliance: Yes, contact customer service for details
- Mounting Style: PCB Mounting
- Dimensions: Various models with travel ranging from 1.50 mm to 9.00 mm
- Certification: UL Listed (where applicable)
Buy the CK Components Series Miniature Slide Switch: OS103012MU1QP1
Purchase the CK Components Series Miniature Slide Switch OS103012MU1QP1 online today to get a high-quality, durable switch suitable for various applications. These switches feature multiple configurations, RoHS compliance, sealed terminals, and excellent electrical characteristics, making them ideal for consumer electronics, test & measurement equipment, network devices, and computer peripherals. Easy to mount on PCB with various actuator options, they provide reliable connectivity, broad temperature operation, and certified compliance, offering enhanced project performance and longevity. Secure yours now for dependable switching performance.
Order your CK Components Series Miniature Slide Switch OS103012MU1QP1 today and ensure reliable, durable switching solutions for your electronic projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS OS103012MU1QP1?
You can click on the BUY or RFQ button to purchase OS103012MU1QP1 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part OS103012MU1QP1?
You can download the OS103012MU1QP1 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of OS103012MU1QP1?
C&K COMPONENTS
