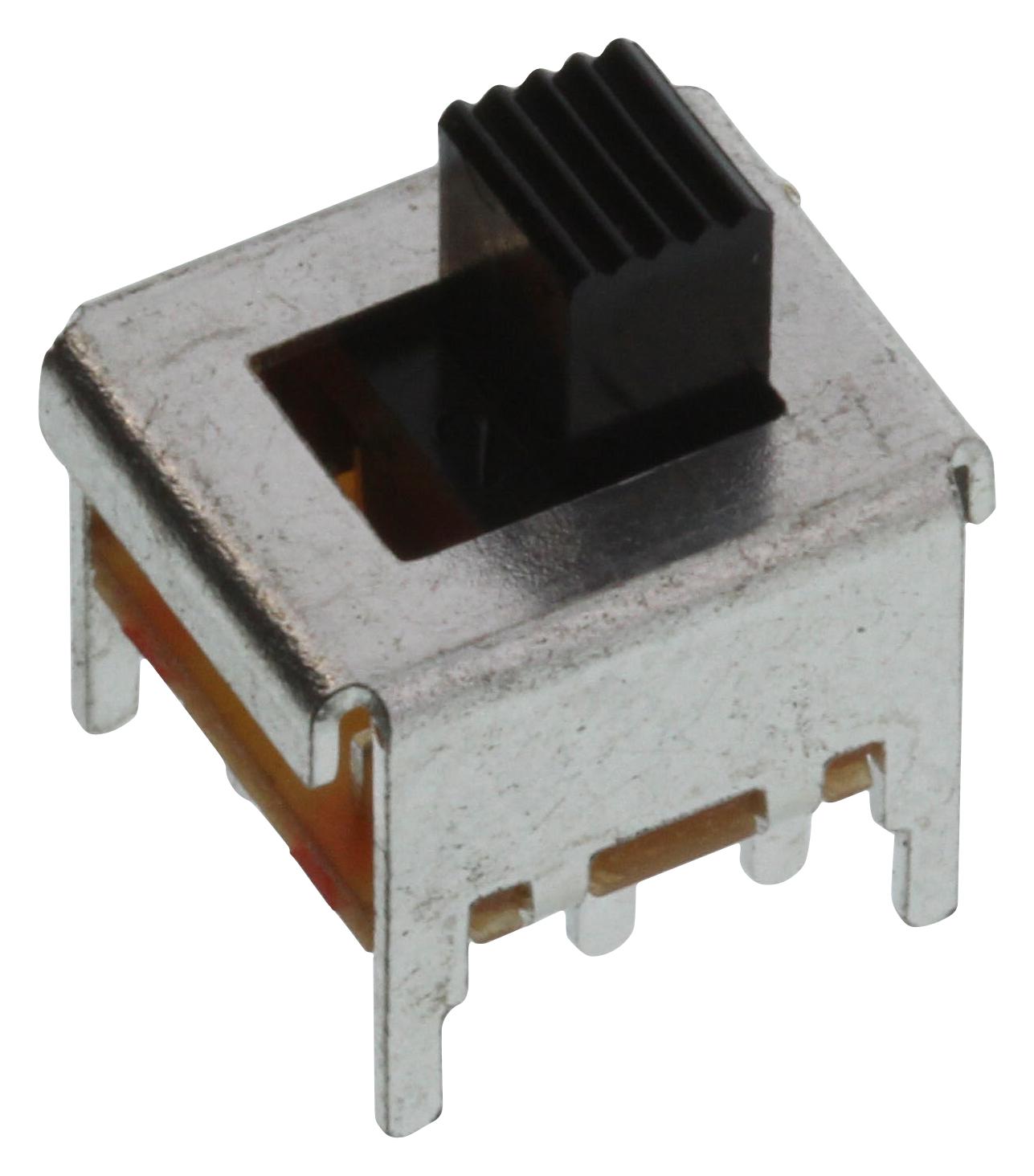

C&K COMPONENTS OS202013MT5QN1 Miniature Slide Switch
Miniature slide switches designed for various electronic and industrial applications, featuring multiple switch configurations including SPDT, DPDT, and triplet options. Constructed with phenolic resin bases, silver-plated contacts, and compatible with RoHS standards, these switches support both shorting and non-shorting contacts, with a mechanical and electrical life of 10,000 cycles. Operating within -30°C to +70°C, they are suitable for PC mounting, consumer, and measurement equipment. Models vary by terminal connections, travel distance, and switching function, making them versatile for custom electronics and control solutions.
C&K COMPONENTS OS202013MT5QN1 Miniature Slide Switch Specifications:
- Contact Rating: varies by model, typically 0.1A @ 12VDC, 0.18A @ 12VDC, 0.3A @ 30VDC, 0.38A @ 20VDC
- Mechanical & Electrical Life: 10,000 cycles
- Contact Resistance: 20 mΩ or less
- Insulation Resistance: 100 MΩ min at 500 VDC
- Dielectric Strength: 500 VAC for 1 minute
- Operating Temperature: -30°C to +70°C
- Contact Material: Copper alloy, silver plated, stationary contacts brass, silver plated
- Housing Material: Phenolic resin base, POM or PA46 actuator options, SPCC Sn plated housing plate
- Terminal Type: Brass, silver plated, sealed terminals
- Compatible with RoHS standards, suitable for PC and panel mounting, test & measurement, consumer, and network products
Buy the Miniature Switches Series OS: Electronic Control Components - OS202013MT5QN1
Order OS Series miniature slide switches online today and ensure dependable switching for your electronic and industrial applications. These high-quality, RoHS-compliant switches feature various configurations including SPDT and DPDT options with shorting and non-shorting contacts. Designed for durability, they support 10,000 cycles and operate across a temperature range of -30°C to +70°C. Perfect for PC mounting, consumer electronics, and precise control setups, these switches deliver performance, flexibility, and easy installation. Purchase now for fast delivery and quality assurance.
Buy OS Series miniature slide switches now and experience reliable, high-quality switching performance for your electronic projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS OS202013MT5QN1?
You can click on the BUY or RFQ button to purchase OS202013MT5QN1 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part OS202013MT5QN1?
You can download the OS202013MT5QN1 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of OS202013MT5QN1?
C&K COMPONENTS
