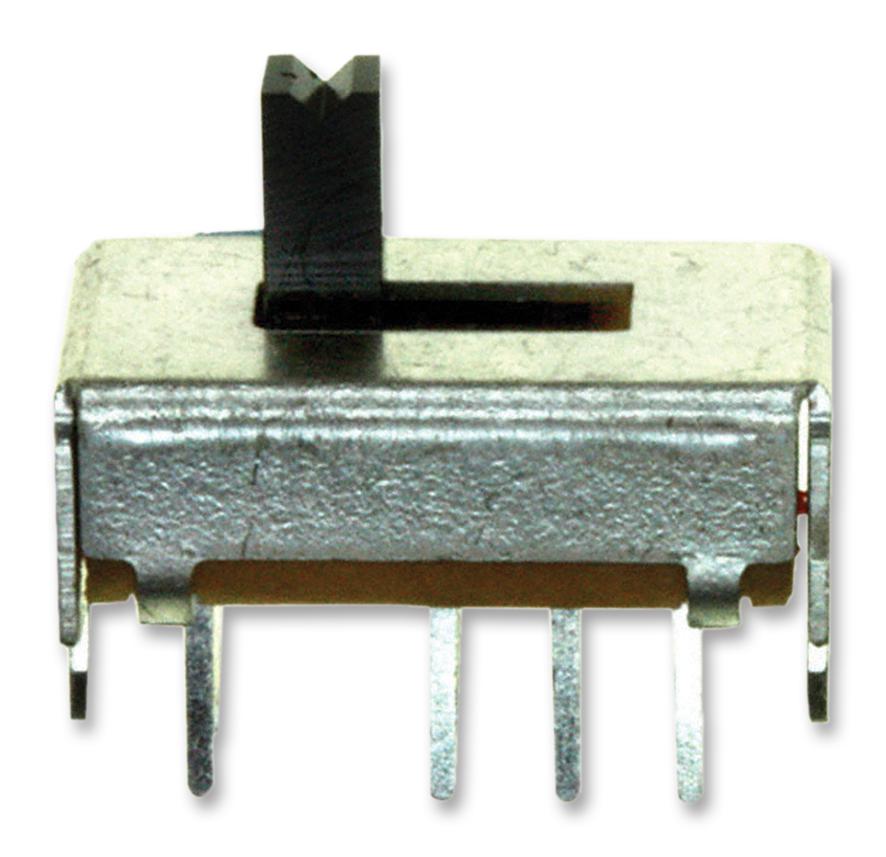

C&K COMPONENTS OS203011MS1QP1 Miniature Slide Switch
The OS Series miniature slide switches are designed for various industrial and electronic applications, offering reliable performance, multiple actuator options, and RoHS compliance. These switches feature phenolic resin bases, durable copper alloy or brass contacts with silver or gold plating, and insulation resistance of 100 MΩ at 500 VDC. Operating temperature ranges from -30°C to +70°C. They come with different circuit functions including SPDT, DPDT, and SPST, suitable for test and measurement, consumer electronics, network devices, and panel mounting. Custom options available upon request.
C&K COMPONENTS OS203011MS1QP1 Miniature Slide Switch Specifications:
- Base Material: Phenolic resin
- Contact Material: Copper alloy, silver or gold plated
- Insulation Resistance: 100 MΩ minimum at 500 VDC
- Dielectric Strength: 500 VAC for 1 minute
- Operating Temperature: -30°C to +70°C
- Contact Rating: Varies; typically 0.1A to 0.34A at 12-30 VDC
- Actuators: POM (black), various travel options
- Circuit Types: SPDT, DPDT, SPST, non-shorting and shorting
- Terminals: Brass, silver plated, sealed terminals
- RoHS Compliant: Yes, contact customer service for specific switches
- Mounting: Panel or PCB mounting options, bulk packaging
- Dimensions: Refer to datasheet for detailed inch/mm measurements
- Environmental: Halogen free, RoHS compliant
Buy the NewTech OS203011MS1QP1 – Reliable Miniature Slide Switches for Industrial Applications
Enhance your electronic assemblies with the reliable miniature slide switches designed for demanding industrial, consumer, and network applications. Featuring robust contact materials, a variety of circuit options including SPDT, DPDT, and SPST, and RoHS compliance, these switches ensure high insulation resistance, durability, and precise actuation. Ideal for test equipment, panel mounting, and network products, their sealed terminals and various actuator options provide versatile solutions. Buy online today for swift delivery and trusted quality to improve your project performance.
Buy NewTech OS203011MS1QP1 now and experience unmatched reliability and performance in your electronic and industrial projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS OS203011MS1QP1?
You can click on the BUY or RFQ button to purchase OS203011MS1QP1 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part OS203011MS1QP1?
You can download the OS203011MS1QP1 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of OS203011MS1QP1?
C&K COMPONENTS
