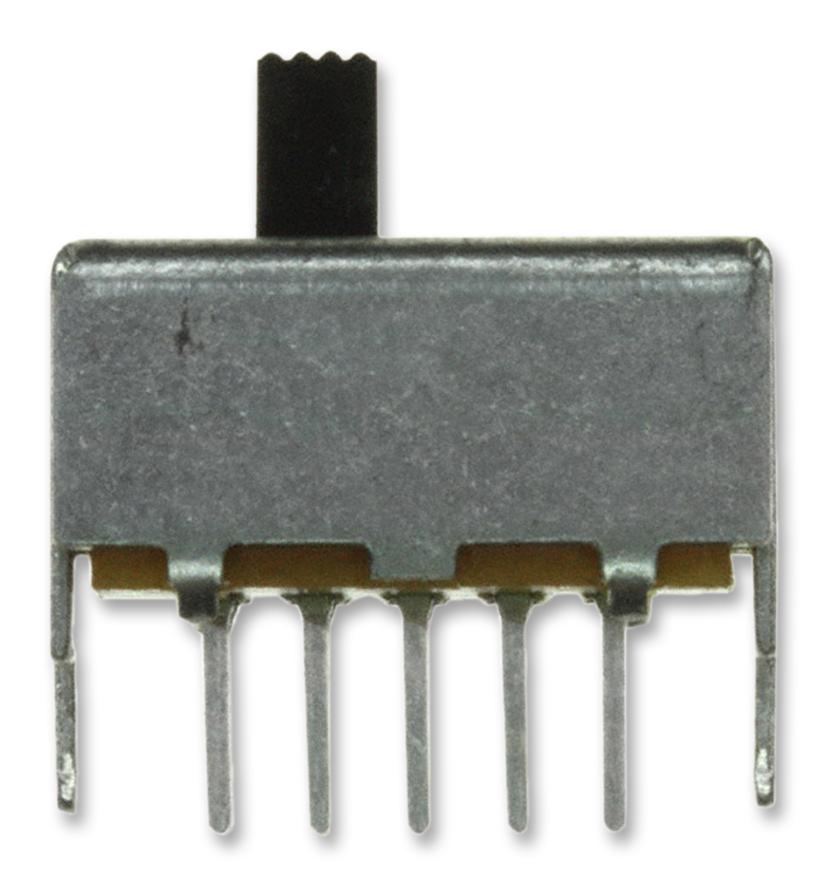

C&K COMPONENTS OS203011MV9QS1 Miniature Slide Switch
The OS Series Miniature Slide Switches are compact, reliable electronic components designed for precise switching applications. Featuring mechanical and electrical life of 10,000 cycles, contact resistance of 20 mΩ or less, and insulation resistance of 100 MΩ at 500 VDC. Suitable for PCB mounting, these switches come with sealed terminals, silver-plated copper and brass contacts, and operate within -30°C to +70°C. They are ideal for test equipment, consumer electronics, network products, and automation systems, with RoHS compliance and halogen-free materials enhancing environmental safety.
C&K COMPONENTS OS203011MV9QS1 Miniature Slide Switch Specifications:
- Contact Resistance: 20 mΩ or less
- Mechanical & Electrical Life: 10,000 cycles
- Insulation Resistance: 100 MΩ min. at 500 VDC
- Dielectric Strength: 500 VAC for 1 minute
- Contact Rating: 0.1A @ 12 VDC, 0.18A @ 12 VDC, 0.24A @ 30 VDC, 0.3A @ 30 VDC, 0.38A @ 20 VDC
- Operating Temperature: -30°C to +70°C
- Materials: Phenolic resin base, POM or PA46 actuator, copper alloy, brass contacts, sealed terminals
- Mounting: PC Mounting, Terminal Sealed
- Dimensions: Various standard sizes as per model, inches and mm
- RoHS Compliance, Halogen Free, Sealed Terminals for durability and environmental safety
Buy the Buy OS Series Miniature Slide Switch Part Number OS203011MV9QS1 Online
Order the OS Series Miniature Slide Switch online today to enjoy high-quality, sealed terminals with multiple configurations suitable for PCB, consumer electronics, and automation systems. These switches provide reliable 10,000-cycle operation, low contact resistance, and withstand temperatures from -30°C to +70°C. With RoHS compliance and halogen-free materials, they are ideal for environmentally conscious designs. Easy to mount on PC boards, they ensure durability, safety, and precision in various industrial and consumer applications, making your projects more reliable and efficient.
Buy OS Series Miniature Slide Switch Part Number OS203011MV9QS1 now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS OS203011MV9QS1?
You can click on the BUY or RFQ button to purchase OS203011MV9QS1 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part OS203011MV9QS1?
You can download the OS203011MV9QS1 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of OS203011MV9QS1?
C&K COMPONENTS
