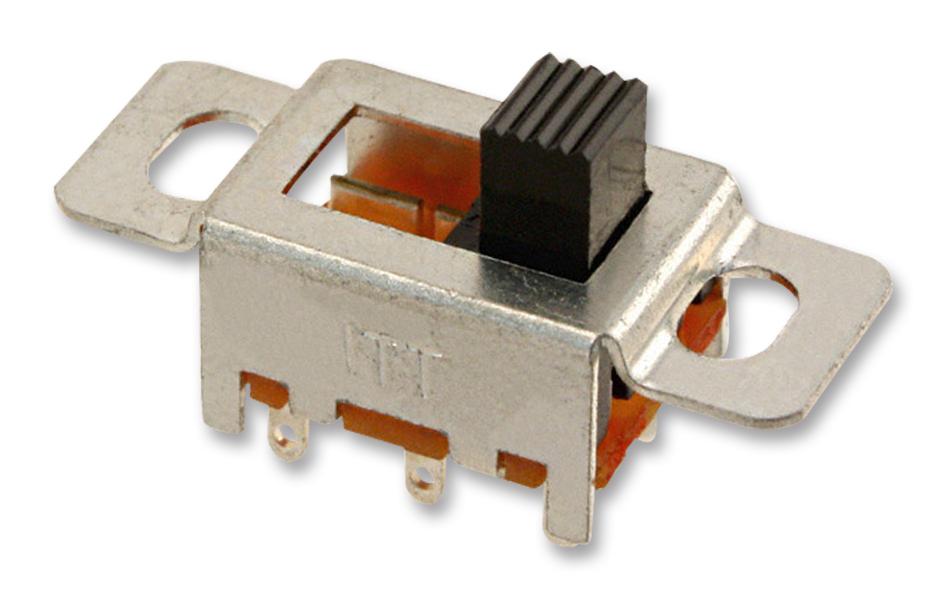

C&K COMPONENTS OS203013MT6QN1 Miniature Slide Switch
The OS Series Miniature Slide Switches are compact, reliable electronic switches suitable for a variety of applications including test & measurement equipment, consumer products, and network devices. Features include multiple actuator options, RoHS compliance, halogen-free materials, and various contact configurations such as SPST, DPDT, and SPDT with non-shorting and shorting functions. Manufactured with phenolic resin bases and copper alloy contacts, these switches support operating temperatures from 30°C to +70°C and are designed for PC mounting with sealed terminals, ensuring durability and consistent electrical performance in demanding environments.
C&K COMPONENTS OS203013MT6QN1 Miniature Slide Switch Specifications:
- Contact Rating: 0.1A @ 12 VDC to 0.38A @ 30 VDC depending on model
- Base Material: Phenolic resin
- Actuator Material: POM, black
- Contact Material: Copper alloy, silver or gold plated
- Insulation Resistance: 100 MΩ min. at 500 VDC
- Dielectric Strength: 500 V AC for 1 minute
- Operating Temperature: -30°C to +70°C
- Mounting: PC type with sealed terminals
- RoHS Compliance: Yes, contact customer service for details
- Switch Functions: SPST, SPDT, DPDT with shorting/non-shorting options
- Number of Cycles: Approximately 1,000 cycles
- Materials include halogen-free and RoHS compliant options
Buy the Buy Switch Components OS Series Part Number OS203013MT6QN1 Online
Purchase the OS Series Miniature Slide Switch online today to upgrade your electronic device reliability. These compact switches feature multiple contact configurations, sealed terminals, RoHS compliance, and are designed for long-term durability. Ideal for applications in consumer electronics, test & measurement, and network equipment, these high-performance switches support operating temperatures from -30°C to +70°C. With sealed terminals and materials supporting halogen-free options, you can confidently integrate these switches into your projects for enhanced dependability and safety. Order now for quick delivery and excellent customer service.
Order your Switch Components OS Series OS203013MT6QN1 today and ensure reliable, high-quality switching performance for your electronics projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS OS203013MT6QN1?
You can click on the BUY or RFQ button to purchase OS203013MT6QN1 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part OS203013MT6QN1?
You can download the OS203013MT6QN1 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of OS203013MT6QN1?
C&K COMPONENTS
