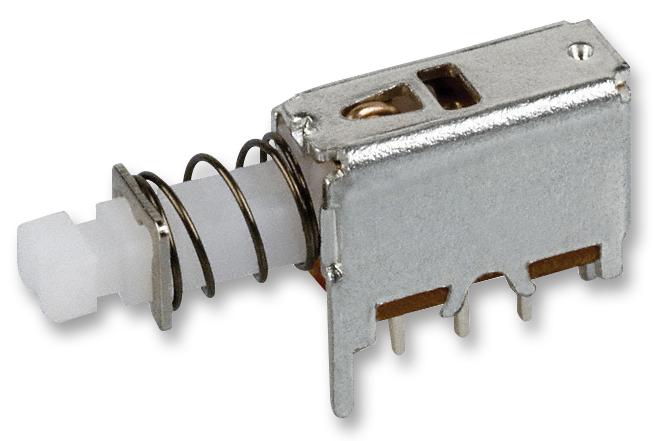

C&K COMPONENTS PN12SHNA03QE Pushbutton Switch
The PN12SHNA03QE is a high-reliability alternate and momentary action pushbutton switch suitable for various control and instrumentation applications. Featuring a compact design, it offers a contact rating of 0.2 AMP at 30 V DC, with an electrical life of 10,000 cycles. The switch’s frame is made of tin-plated steel, with a silver-plated brass terminal ensuring durability and conductivity. Its operating temperature ranges from -10°C to 60°C, and it comes in anti-static trays for safe handling. Ideal for automation and control systems requiring precise actuation and dependable performance.
C&K COMPONENTS PN12SHNA03QE Pushbutton Switch Specifications:
- Contact Rating: 0.2 AMP at 30 V DC
- Electrical Life: 10,000 cycles
- Mechanical Life: 10,000 cycles
- Contact Resistance: 30 mΩ max.
- Insulation Resistance: 100 MΩ min.
- Dielectric Strength: 500 V AC min.
- Operating Temperature: -10°C to 60°C
- Frame Material: Tin plated steel
- Actuator Material: PA 66 black
- Base Material: Phenolic resin
- Terminal Material: Silver plated brass
- Spring Materials: Phosphor bronze, steel
Buy the CK Series PN12 Pushbutton Switch: PN12SHNA03QE
Discover the CK Series PN12 pushbutton switch, designed for reliable operation in control panels and automation systems. With a contact rating of 0.2 AMP at 30 V DC, this switch offers a durable metal frame, silver-plated contacts, and a compact size suitable for tight spaces. Its robust construction ensures thousands of cycles, withstanding a temperature range of -10°C to 60°C. Secure yours online now for dependable control solutions, featuring anti-static packaging and easy installation for industrial, instrumentation, and automation projects.
Order your CK Series PN12 pushbutton switch today and ensure reliable control with durable construction and high electrical performance.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PN12SHNA03QE?
You can click on the BUY or RFQ button to purchase PN12SHNA03QE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PN12SHNA03QE?
You can download the PN12SHNA03QE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PN12SHNA03QE?
C&K COMPONENTS
