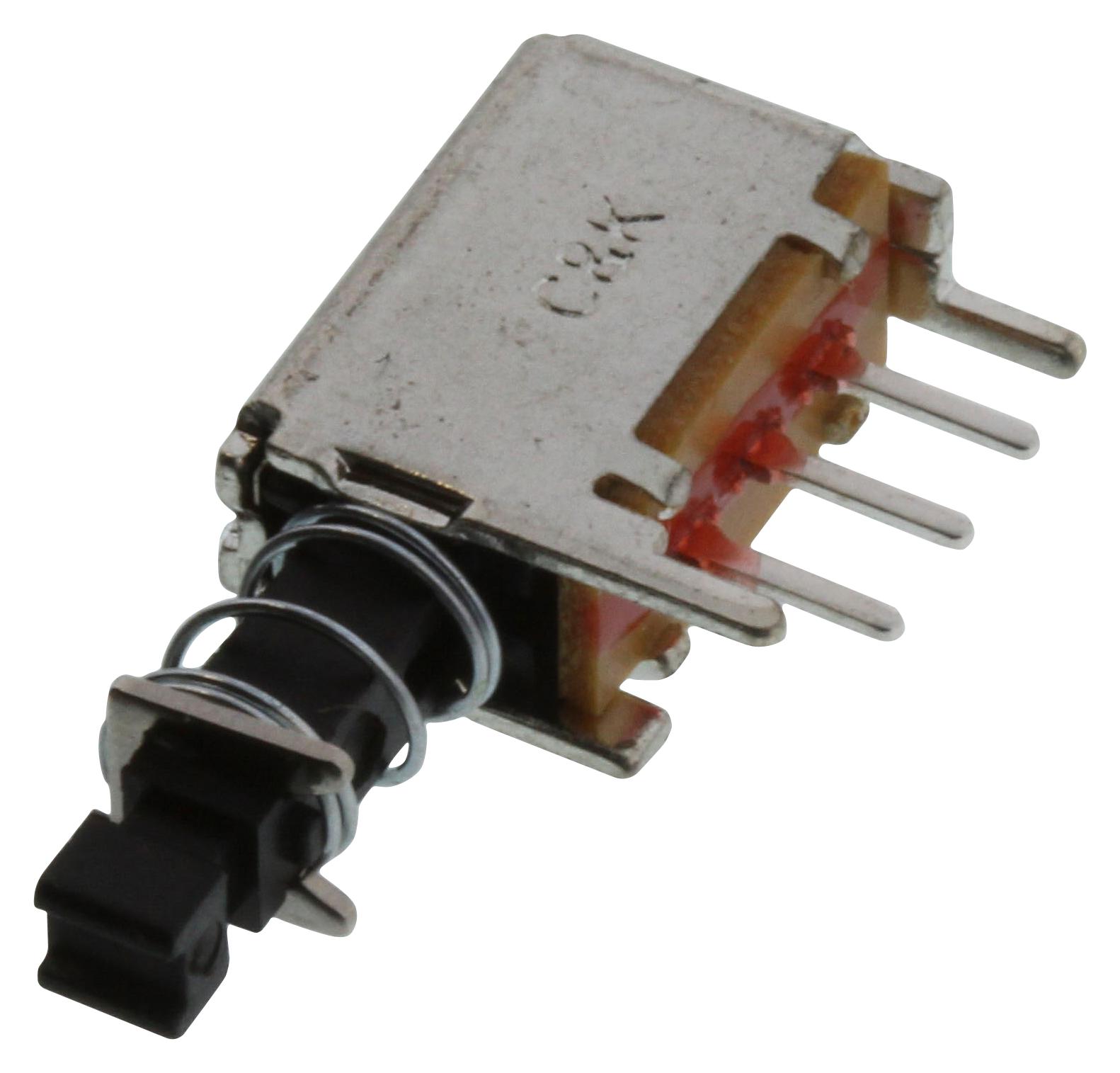

C&K COMPONENTS PN12SJNA03QE Pushbutton Switch
The PN12SJNA03QE is a reliable, RoHS-compliant pushbutton switch suitable for various industrial and control applications. It offers a momentary or locking action with a contact rating of 0.2 AMP at 30 V DC max. The switch features a durable construction with a tin-plated steel frame, silver-plated brass terminals, and an epoxy terminal seal. It supports up to 10,000 mechanical and electrical cycles, operates at temperatures from -10°C to 60°C, and is supplied in anti-static trays for safe handling. Ideal for automation, instrumentation, and control panel use.
C&K COMPONENTS PN12SJNA03QE Pushbutton Switch Specifications:
- Contact Rating: 0.2 AMP @ 30 V DC max.
- Electrical Life: 10,000 make-and-break cycles at full load.
- Mechanical Life: 10,000 on/off cycles.
- Contact Resistance: 30 mQ max. initial.
- Insulation Resistance: 100 MOQ min.
- Dielectric Strength: 500 V AC min.
- Operating/Storage Temperatures: -10°C to 60°C.
- Materials: Frame - Tin plated steel; Actuator - PA 66 black; Base - Phenolic resin; Terminals - Silver plated brass; Movable contacts - Silver plated phosphor bronze; Terminal seal - Epoxy.
- Packaged in anti-static trays for safe handling.
Buy the Buy CK Switches Pushbutton Switch Part Number PN12SJNA03QE Online
Order the CK Pushbutton Switch PN12SJNA03QE online today to ensure a high-quality, durable control component with a 0.2A/30V DC rating. Designed for reliable operation in industrial environments, this switch features a robust construction with tin-plated steel, silver-plated brass terminals, and epoxy sealing. It supports up to 10,000 cycles, operates at -10°C to 60°C, and comes in anti-static trays. Perfect for automation, instrumentation, and control panels, ensuring long-lasting performance and safety.
Get CK Switches PN12SJNA03QE today—built for durability and reliable control in industrial and automation applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PN12SJNA03QE?
You can click on the BUY or RFQ button to purchase PN12SJNA03QE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PN12SJNA03QE?
You can download the PN12SJNA03QE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PN12SJNA03QE?
C&K COMPONENTS
