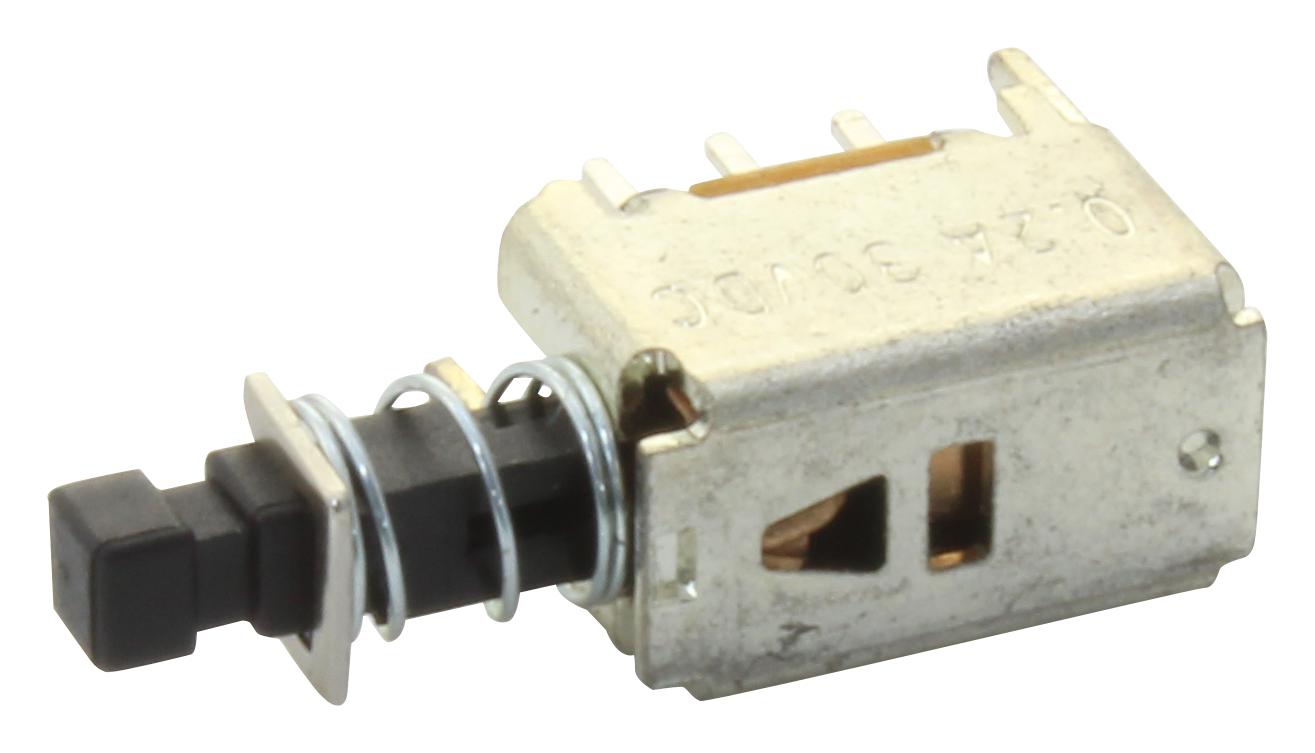

C&K COMPONENTS PN22SJSA03QE Industrial Pushbutton Switch
The pushbutton switch PN22SJSA03QE features a lockable function with a 28 mm square actuator, designed for reliable electrical operation in control panels and machinery. Constructed with durable materials including a tin-plated steel frame, silver-plated brass terminals, and a phenolic resin base, it offers a contact rating of 0.2 A at 30 V DC and a mechanical life cycle of 10,000 on/off cycles. Suitable for industrial automation, instrumentation, and control applications where dependable switching performance under rigorous conditions is essential.
C&K COMPONENTS PN22SJSA03QE Industrial Pushbutton Switch Specifications:
- Contact Rating: 0.2 Amp @ 30 V DC
- Electrical Life: 10,000 cycles
- Mechanical Life: 10,000 cycles
- Contact Resistance: 30 mΩ max
- Insulation Resistance: 100 MΩ min
- Dielectric Strength: 500 V AC min
- Operating/Storage Temperatures: -10°C to 60°C
- Frame: Tin plated steel
- Actuator: PA 66 black
- Base: Phenolic resin
- Terminals: Silver plated brass
- Materials: Movable contacts — Silver plated phosphor bronze
- Spring: Phosphor bronze
- Seal: Epoxy
Buy the Buy CK Switches PN22SJSA03QE Part Number PN22SJSA03QE Online
Enhance your control systems with the CK Series PN22SJSA03QE lockable pushbutton switch. Featuring a durable design with a 28 mm square actuator, it provides reliable engagement for machinery and instrumentation. Constructed with an anti-corrosion steel frame, phenolic resin base, and gold-plate terminals, it offers a contact rating of 0.2 A at 30 V DC and withstands 10,000 cycles. Ideal for automation panels, control stations, and industrial equipment requiring dependable switching performance under demanding conditions.
Order your CK Series PN22SJSA03QE lockable pushbutton switch today and ensure reliable control for your industrial or instrumentation projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PN22SJSA03QE?
You can click on the BUY or RFQ button to purchase PN22SJSA03QE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PN22SJSA03QE?
You can download the PN22SJSA03QE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PN22SJSA03QE?
C&K COMPONENTS
