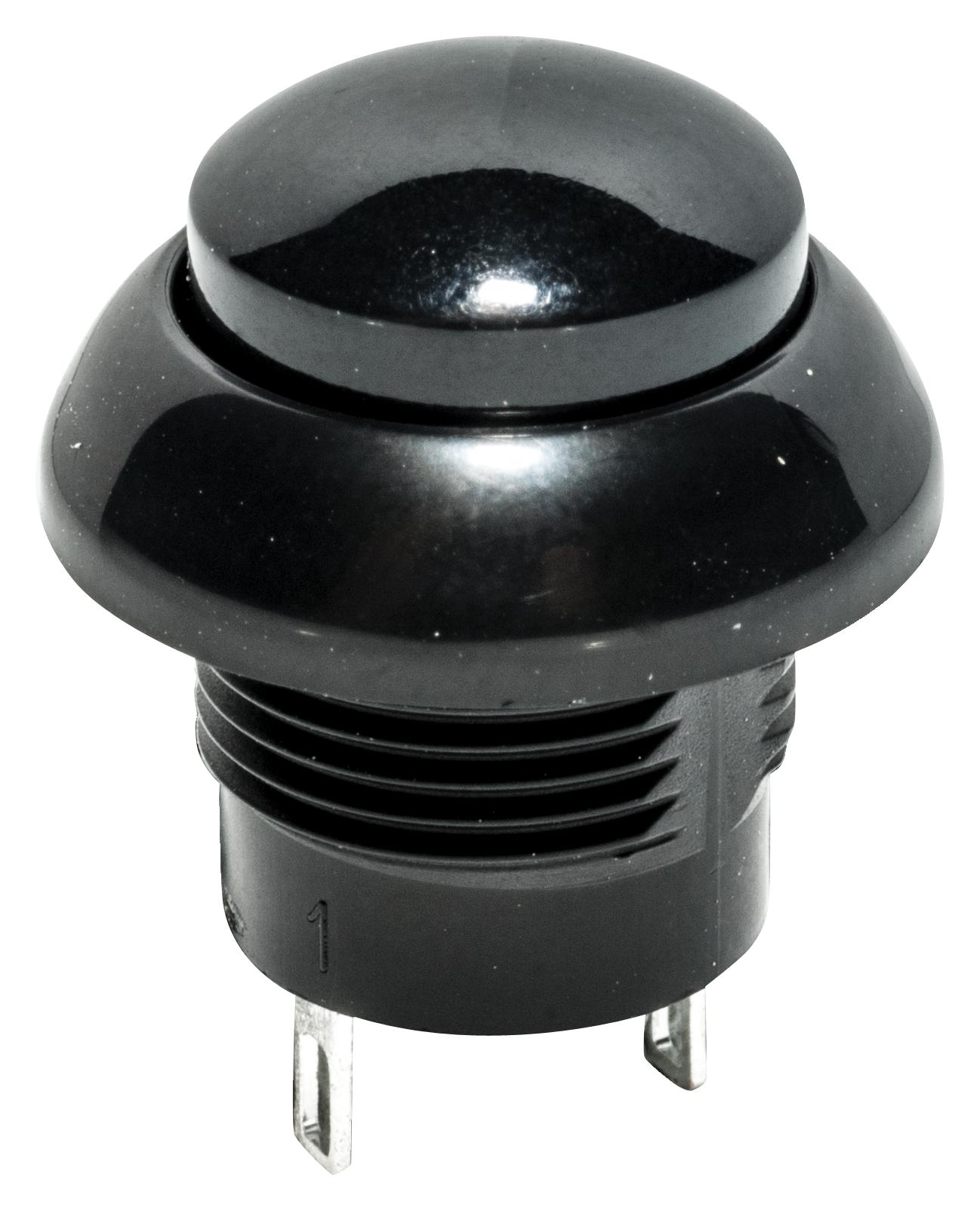

C&K COMPONENTS PNP8E2D2W03QE Sealed Pushbutton Switch
The PNP Series sealed pushbutton switch offers reliable performance with IP68 sealing, a 1,000,000-cycle mechanical life, and a choice of contact materials like silver or gold over silver. Designed with a threaded front mount for easy installation, it supports multiple contact configurations, including SPST and SPDT. Its industrial-grade construction encompasses a durable housing made of PBT/PC, silicone rubber internal seal, and copper terminals with silver or gold overlays. Suitable for harsh environments, it features a momentary contact, operating force of 3N or 8N, and operates effectively from -40°C to +85°C, making it ideal for heavy equipment and control applications.
C&K COMPONENTS PNP8E2D2W03QE Sealed Pushbutton Switch Specifications:
- Function: SPST, SPDT Double Break (Form Z) Momentary
- Contact Arrangement: N.O. and N.C.
- Mounting Type: Threaded front mount
- Operating Life: 1,000,000 cycles
- Total Travel: 2 mm max.
- Operating Point: 0.9 + 0.25 mm
- Over Travel: 0.25 mm min.
- Operating Force: 3N + 1.5N or 8N + 1.5N
- Vibration Resistance: 10-500 Hz, 10g Max
- Shock Resistance: 50g, 11ms sawtooth wave
- Contact Rating: 5A/32 VDC resistive (silver), 3A/32 VDC (silver), 10mA/5 VDC (gold over silver)
- Dielectric Strength: 1000 V AC for 1 min.
- Insulation Resistance: 1 GΩ @ 500 VDC
- Initial Contact Resistance: 50 mΩ max
- Materials: Housing - PBT/PC, Base - PBT, Cap - PBT, Actuator - PBT, Internal Seal - Silicone rubber, Terminals - Copper with silver or gold overlays
- Operating Temperature: -40°C to +85°C
- Sealing: IP68
- ESD Protection: Minimum 15KV
Buy the Celesfe PNP8E2D2W03QE – Reliable Sealed Pushbutton for Industrial Applications
Order the Celesfe PNP Series sealed pushbutton switch online today to ensure dependable operation in demanding industrial settings. With IP68 sealing, 1 million cycle life, and robust construction, this switch is ideal for control panels, heavy equipment, and harsh environments. Its versatile contact options, easy threaded mounting, and high resistance to vibration and shock make it a valuable component for industrial automation, machinery, & instrumentation. Purchase now for quick delivery and industry-leading performance.
Buy Celesfe PNP8E2D2W03QE now and experience unmatched reliability and performance in harsh industrial environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PNP8E2D2W03QE?
You can click on the BUY or RFQ button to purchase PNP8E2D2W03QE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PNP8E2D2W03QE?
You can download the PNP8E2D2W03QE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PNP8E2D2W03QE?
C&K COMPONENTS
