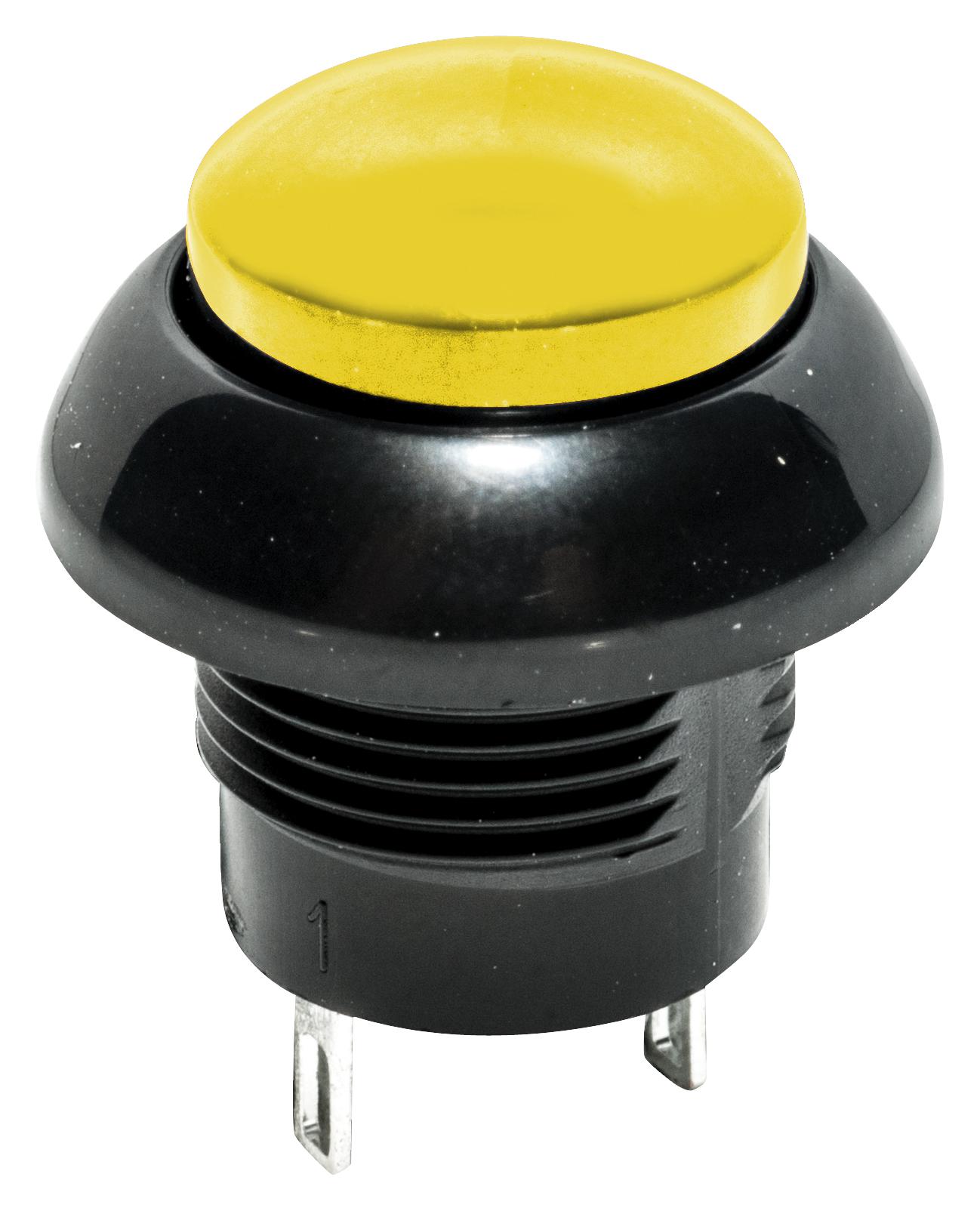

C&K COMPONENTS PNP8E5D2W03QE Sealed Pushbutton Switch
The PNP Series Sealed Pushbutton Switch is a high-quality industrial control component designed for heavy-duty applications. It features snap-action mechanism for positive tactile feedback, IP68 sealing for harsh environments, and a mechanical life cycle of 1,000,000 cycles. Suitable for control grips, off-road panels, industrial equipment, and conveyor controls, this switch offers SPST and SPDT double break configurations, with operating forces of 3N or 8N, and an operating temperature range of -40°C to +85°C. Its durable construction includes a PBT housing, silicone rubber internal seal, and copper terminals with silver plating, ensuring reliable performance in demanding conditions.
C&K COMPONENTS PNP8E5D2W03QE Sealed Pushbutton Switch Specifications:
- FUNCTION: SPST, SPDT Double Break (Form Z) Momentary
- CONTACT ARRANGEMENT: N.O. and N.C.
- MOUNTING TYPE: Threaded front mount
- OPERATING LIFE: 1,000,000 cycles
- TOTAL TRAVEL: 2 mm max.
- OPERATING POINT: 0.9 + 0.25 mm
- OVER TRAVEL: 0.25 mm min.
- OPERATING FORCE: 3N + 1.5N or 8N + 1.5N
- VIBRATION: 10-500 Hz, 10g Max
- SHOCK: 50g, 11ms sawtooth wave
- CONTACT RATING: 5A/32 VDC resistive (Silver, option Q), 10mA/5 VDC resistive (Gold over Silver, option G)
- DIELECTRIC STRENGTH: 1000 V AC for 1 min.
- INSULATION RESISTANCE: 1 GΩ @ 500 VDC
- INITIAL CONTACT RESISTANCE: 50 mΩ max
- OPERATING TEMPERATURE: -40°C to +85°C
- SEALING: IP68
- HOUSING: PBT/PC
- ACTUATOR: PBT
- TERMINALS: Copper with silver nickel inlay, silver plating
- OPERATING ENVIRONMENT: ESD protection 15KV min
Buy the C&K Switches PNP8E5D2W03QE – Reliable Industrial Pushbutton for Heavy-Duty Environments
Experience the durability and reliability of the C&K PNP series sealed pushbutton switch. Designed for industrial applications, it features IP68 sealing, high cycle life of 1,000,000, and robust construction suitable for control panels, heavy equipment, and automation systems. Its stainless design ensures performance in extreme environments, while various actuator options offer flexibility. Whether you need SPST or SPDT configurations, this switch guarantees long-lasting operation with excellent resistance to shocks, vibration, and temperature fluctuations. Perfect for demanding industrial controls and automation setups.
Order your C&K Switches PNP8E5D2W03QE sealed pushbutton today and enhance your industrial control systems with dependable, IP68-rated switches for harsh environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PNP8E5D2W03QE?
You can click on the BUY or RFQ button to purchase PNP8E5D2W03QE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PNP8E5D2W03QE?
You can download the PNP8E5D2W03QE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PNP8E5D2W03QE?
C&K COMPONENTS
