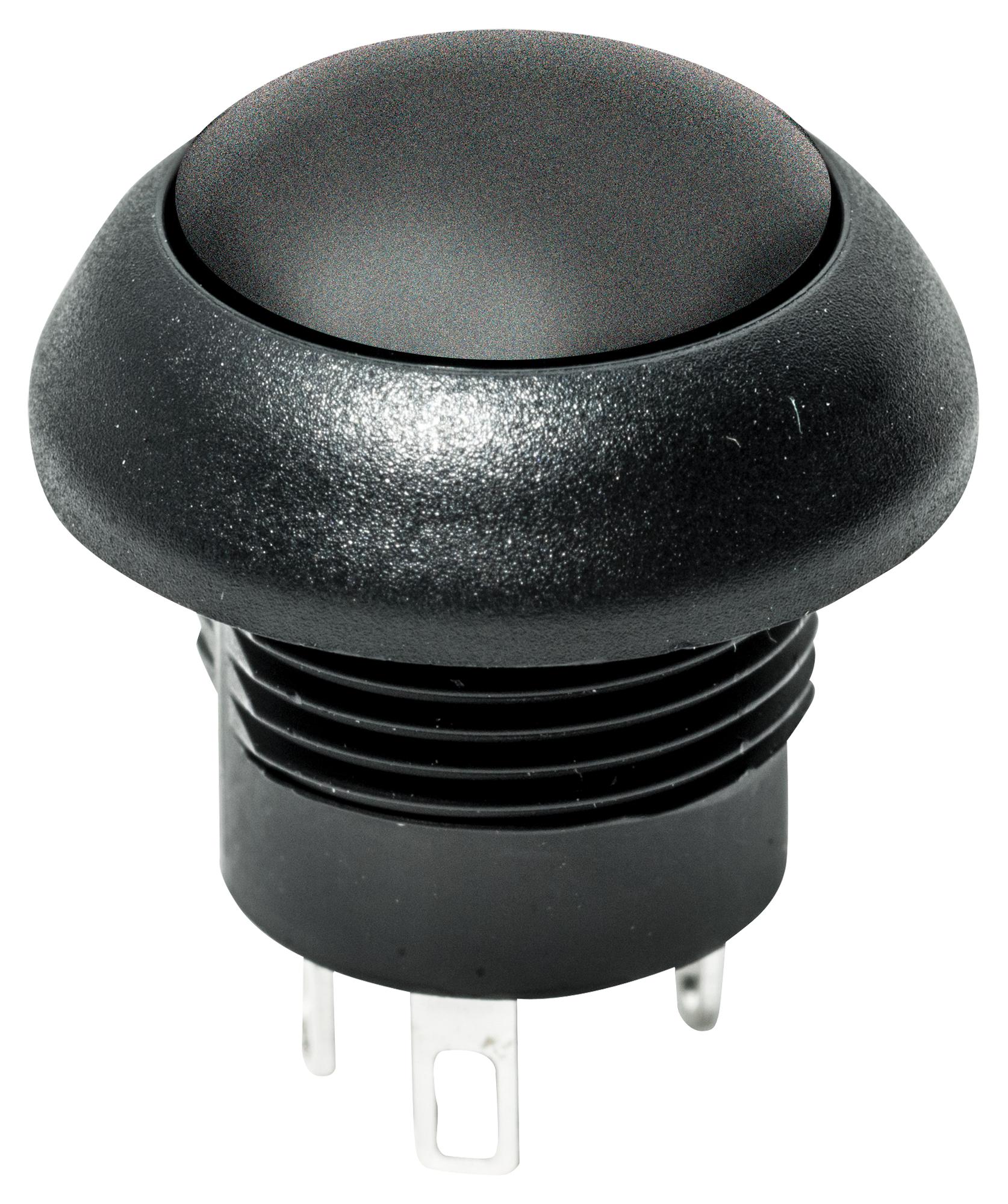

C&K COMPONENTS PNP8S2T2C03QE Sealed Pushbutton Switch
The PNP Series sealed pushbutton switch offers robust operation with IP68 sealing, a mechanical life of 1,000,000 cycles, and resistive contact ratings up to 5A at 32VDC. It features a snap-action mechanism with tactile feedback, suitable for harsh environments including industrial control, off-road panels, and heavy equipment. The switch has a threaded front mount, operates between -40°C to +85°C, and provides options with silver or gold contact materials, multiple actuator colors, and various termination types, ensuring versatile application in demanding conditions.
C&K COMPONENTS PNP8S2T2C03QE Sealed Pushbutton Switch Specifications:
- Function: SPST, SPDT Double Break (Form Z) Momentary
- Contact Arrangement: N.O. and N.C.
- Mounting Type: Threaded front mount
- Operating Life: 1,000,000 cycles
- Total Travel: 2 mm max.
- Operating Point: 0.9 + 0.25 mm
- Over Travel: 0.25 mm min.
- Operating Force: 3N + 1.5N or 8N + 1.5N
- Vibration: 10-500 Hz 10g Max
- Shock: 50g 11ms sawtooth wave
- Contact Rating: 5A/32 VDC resistive, 3A/32 VDC resistive, or 10mA/5 VDC resistive
- Dielectric Strength: 1000 V AC for 1 min.
- Insulation Resistance: 1 GΩ @ 500 VDC.
- Initial Contact Resistance: 50 mΩ max.
- Bounce Time: <5 ms
- Housing: PBT/PC
- Base: PBT
- Cap: PBT
- Actuator: PBT
- Internal Seal: Silicone rubber
- Terminals: Copper with silver nickel inlay, silver plating
- Materials: Operating temperature -40°C to +85°C, ESD protection 15KV min., sealing IP68
Buy the CK Switches Series PNP Pushbutton: PNP8S2T2C03QE
Order the CK Switches PNP8S2T2C03QE sealed pushbutton switch today for reliable performance in harsh environments. Featuring IP68 sealing, long life cycle, and multiple contact options, this switch is ideal for industrial control, off-road panels, and heavy machinery. With versatile actuator colors, various termination types, and operating temperatures from -40°C to +85°C, it guarantees durability and efficiency for demanding applications. Purchase online now for fast delivery and superior control solutions.
Buy CK Switches PNP8S2T2C03QE now and experience unmatched reliability and performance for your industrial control and heavy equipment needs.
