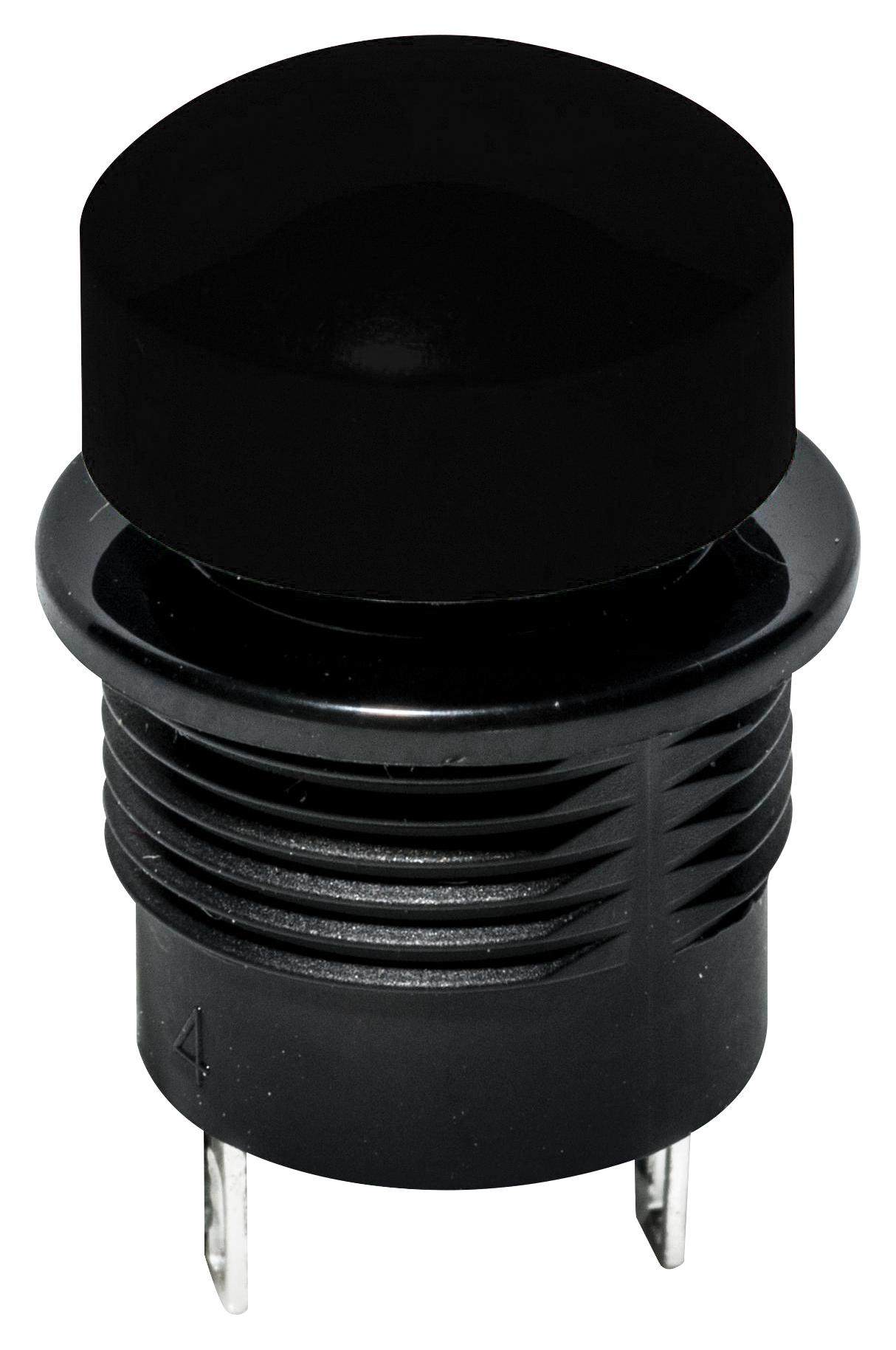

C&K COMPONENTS PNP8S2T2Y03QE Sealed Pushbutton Switch
The PNP Series sealed pushbutton switch offers reliable momentary SPST and SPDT double break contact configurations, with a threaded front mount for easy installation. Designed to endure harsh environments, it features an IP68 sealing, a mechanical life of 1,000,000 cycles, and an operating force of 3N. Manufactured with PBT housing and internal silicone rubber seals, it supports operating temperatures from -40°C to +85°C. Suitable for industrial controls, heavy equipment, and off-road panels, this switch is RoHS compliant and resistant to vibration and shock, ensuring long-lasting performance in demanding applications.
C&K COMPONENTS PNP8S2T2Y03QE Sealed Pushbutton Switch Specifications:
- Function: SPST, SPDT Double Break (Form Z) Momentary
- Contact Arrangement: N.O. and N.C.
- Mounting Type: Threaded front mount
- Operating Life: 1,000,000 cycles
- Total Travel: 2 mm max.
- Operating Point: 0.9 + 0.25 mm
- Over Travel: 0.25 mm min.
- Operating Force: 3N + 1.5N
- Vibration: 10-500 Hz 10g Max
- Shock: 50g 11ms sawtooth wave
- Contact Rating: 5A/32 VDC resistive, 10mA/5 VDC gold over silver, 3A/32 VDC resistive
- Dielectric Strength: 1000 V AC for 1 min.
- Insulation Resistance: 1 GΩ @ 500 VDC
- Initial Contact Resistance: 50 mΩ max
- Housing: PBT/PC
- Internal Seal: Silicone rubber
- Terminals: Copper with silver nickel inlay
- Operating Temperature: -40°C to +85°C
- Sealing: IP68
- Vibration and Shock Resistance, RoHS Compliance
Buy the Buy CKS PNP Series Sealed Pushbutton Switch Part Number PNP8S2T2Y03QE Online
Purchase the CKS PNP Series sealed pushbutton switch online today and enjoy durable, reliable operation in harsh environments. Engineered for industrial controls, heavy equipment, and off-road applications, this switch features an IP68 seal, a mechanical life of 1,000,000 cycles, and smooth tactile feedback. Its rugged PBT housing and silicone rubber seal ensure long-lasting performance, resistance to vibration and shock, and operation across temperatures from -40°C to +85°C. Trust this high-quality switch for your demanding automation and control needs.
Get CKS PNP Series sealed pushbutton switch today—built for harsh environments, lasting over a million cycles with reliable IP68 sealing.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PNP8S2T2Y03QE?
You can click on the BUY or RFQ button to purchase PNP8S2T2Y03QE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PNP8S2T2Y03QE?
You can download the PNP8S2T2Y03QE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PNP8S2T2Y03QE?
C&K COMPONENTS
