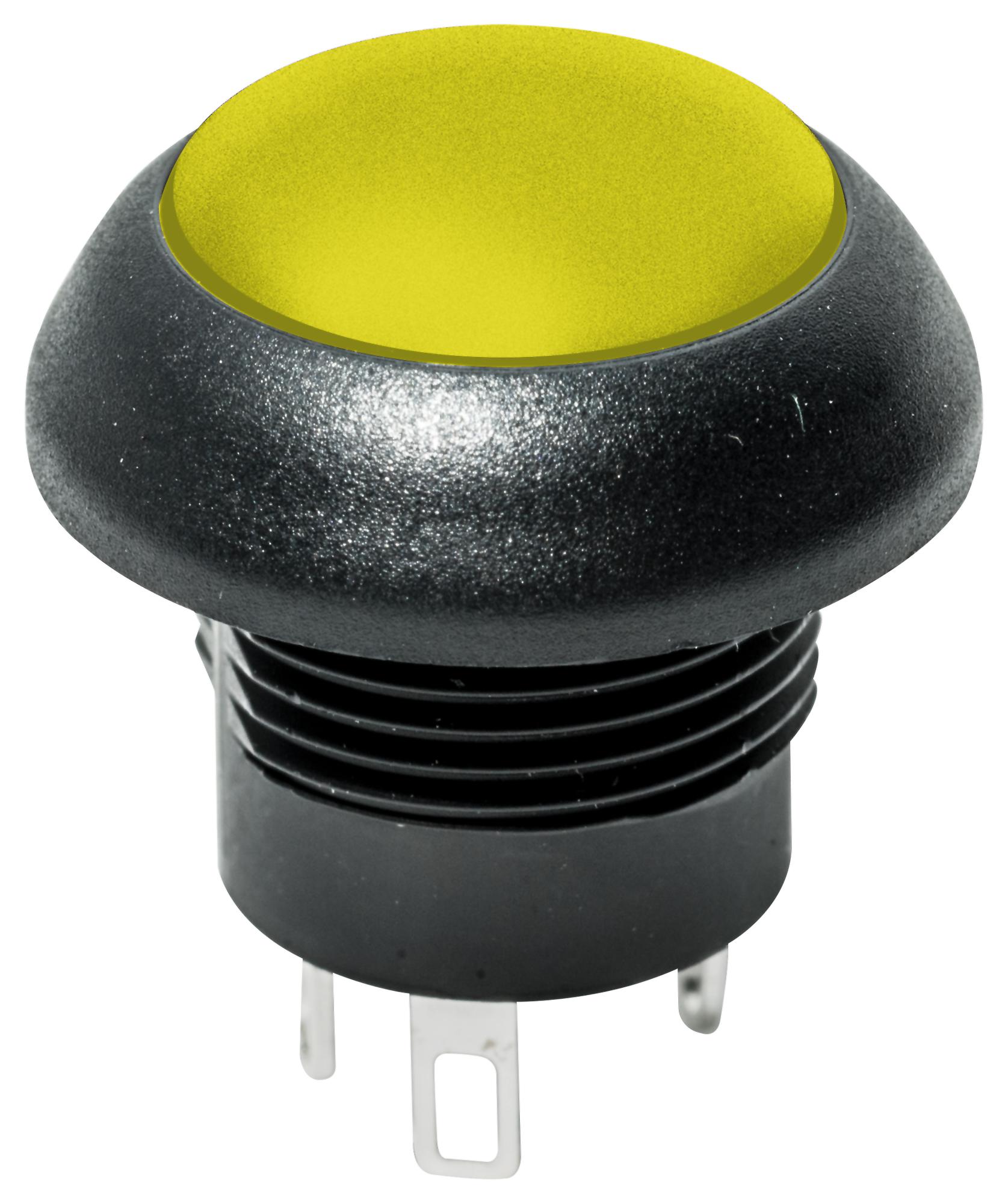

C&K COMPONENTS PNP8S5D2C03QE Sealed Pushbutton Switch
The PNP Series sealed pushbutton switch offers a durable, IP68-rated design suitable for harsh environments. Featuring snap-action contact for positive tactile feedback and a mechanical life of 1,000,000 cycles, it supports resistive loads up to 5A. Its threaded front mount and multiple housing styles allow flexible installation, making it ideal for control panels, industrial equipment, lifts, and conveyor controls. With various contact and termination options, as well as sealed silicone rubber internals, the switch ensures reliable performance across diverse applications in challenging conditions.
C&K COMPONENTS PNP8S5D2C03QE Sealed Pushbutton Switch Specifications:
- Function: SPST, SPDT Double Break (Form Z) Momentary
- Contact Arrangement: N.O. and N.C.
- Mounting Type: Threaded front mount
- Operating Life: 1,000,000 cycles
- Total Travel: 2 mm max.
- Operating Point: 0.9 + 0.25 mm
- Over Travel: 0.25 mm min.
- Operating Force: 3N + 1.5N; 8N + 1.5N
- Vibration: 10-500 Hz, 10g Max
- Shock: 50g, 11ms sawtooth wave
- Contact Rating: 5A/32 VDC resistive (Silver, 25,000 cycles), 10mA/5 VDC resistive (Gold over Silver, 1,000,000 cycles)
- Dielectric Strength: 1000 V AC for 1 min.
- Insulation Resistance: 1 GΩ at 500 VDC
- Initial Contact Resistance: 50 mΩ max
- Operating Temperature: -40°C to +85°C
- Housing: PBT/PC, Silicone rubber seal
- Terminals: Copper with silver nickel inlay, silver plating
- Sealing: IP68
- Materials: Actuator, housing, cap - PBT; Internals - silicone rubber
Buy the CYS PNP8S5D2C03QE – Reliable Sealed Pushbutton Switch for Industrial Applications
Purchase the CYS PNP Series sealed pushbutton switch online now to ensure reliable, IP68-rated protection for your industrial controls. With a mechanical life of 1,000,000 cycles, resistive load capacity up to 5A, and multiple contact options, this switch is ideal for demanding environments such as control panels, lifts, and heavy industrial machinery. Featuring sealed silicone rubber internals, threaded front mounting, and a robust IP68 sealing standard, it offers durability and excellent performance. Order today to enhance your industrial control solutions with trusted quality and immediate delivery.
Order your CYS PNP Series sealed pushbutton switch today and secure dependable control for industrial equipment, control panels, and harsh environment applications.
