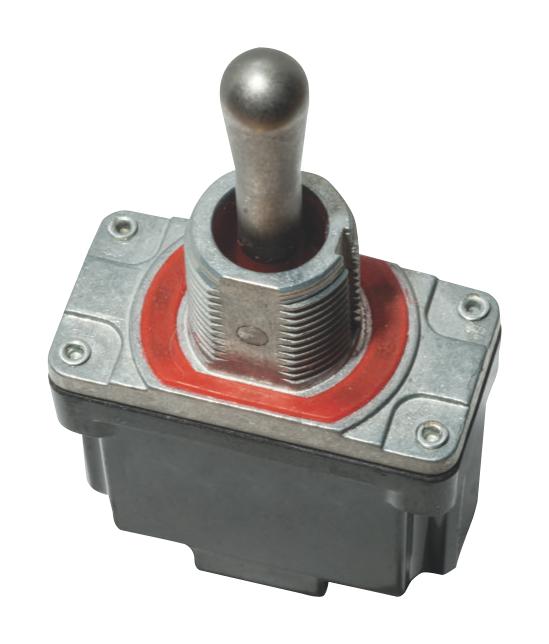

C&K COMPONENTS PT103SSQ Sealed Power Toggle Switch
The PT Series Sealed Power Toggle Switch is ideal for demanding outdoor industrial applications requiring reliable operation in harsh environments. Featuring an IP66/IP68 rating and integrated panel seal, it provides superior protection against water, dust, and dirt. Made with durable stainless steel actuator and thermoset case, this switch supports multiple function options like On-Off-On, Momentary, and complex switching configurations. Rated for high electrical loads, it withstands vibrations and extreme temperatures from -40°C to +85°C, making it suitable for off-road, construction, agriculture, and lifting equipment. Its high-quality construction ensures long service life with up to 10,000 cycles of electrical operation.
C&K COMPONENTS PT103SSQ Sealed Power Toggle Switch Specifications:
- Materials: UL certified thermoset case, stainless steel actuator, zinc die-cast bushing, silicone seal, copper alloy contacts, brass terminals
- Electrical Ratings: 5A GP, 277VAC; 10A GP, 277VAC; 1/2 hp, 125VAC; 1 hp, 250VAC; 154, 28VDC; 10A, 28VDC; 0.75A, 125VDC; 0.5A, 250VDC
- Electrical Life: 10,000 cycles
- Dielectric Strength: 2500V min.
- Insulation Resistance: 1000 MΩ min.
- Contact Resistance: 50 mΩ max.
- Operating Temperature: -40°C to +85°C
- IP Ratings: IP66 / IP68
- Switch Functions: Single Pole On-None-On, On-None-Off, On-Off-On, Mom-Off-Mom, On-Off-Mom, On-None-Mom
- Terminals: Solder, quick connect, or screw, nickel plated brass
- Dimensions: Refer to detailed schematic for sizes, typically around 17.2mm to 25.2mm in critical dimensions
Buy the Buy C&K Sealed Power Toggle Switch Part Number PT103SSQ Online
Purchase the C&K PT103SSQ Sealed Power Toggle Switch online today to guarantee durable and reliable switching in demanding outdoor environments. This switch offers superior protection with an IP66/IP68 rating and features high-quality stainless steel and thermoset materials for long-lasting performance. Its versatile design supports various functions suitable for off-road, construction, agricultural, and industrial equipment, providing excellent electrical and mechanical durability. Order now and give your projects dependable control solutions with fast, secure online shopping.
Order your C&K PT103SSQ Series Sealed Power Toggle Switch today and ensure your industrial projects operate reliably in the toughest outdoor conditions.
