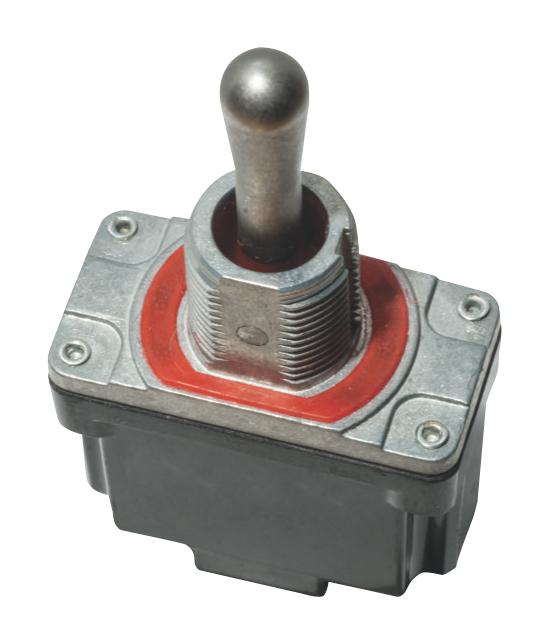

C&K COMPONENTS PT201SSQ Sealed Power Toggle Switch
The PT series sealed power toggle switch offers reliable performance for demanding industrial applications. It features IP66/IP68 ratings, UL 61058-1 certification, and a robust, heat-resistant housing. Suitable for off-road, construction, agricultural vehicles, and outdoor industrial equipment, it provides excellent oil and fuel resistance, a sealed panel design for protection against dust and water, and various mounting options. Available in single and double pole configurations with different actuators and terminal types, it ensures durable, vibration-resistant operation in harsh environments.
C&K COMPONENTS PT201SSQ Sealed Power Toggle Switch Specifications:
- UL Electrical Ratings: 15A GP, 277VAC 50/60Hz, 1/2 hp 125VAC, 1 hp 250VAC, resistive loads up to 25VDC
- DC Electrical Ratings: 0.75A 125VDC, 0.5A 250VDC, 10A 28VDC
- Mechanical and electrical life: 10,000 cycles
- Operating Temperature: -40°C to +85°C
- Ingress Protection: IP66/IP68
- Housing Material: Heat resistant, durable thermoset
- Sealing: Silicone
- Terminal Types: Brass for quick connect (silver plated), solder, screw terminals
- Actuator Options: Standard, keyway, various angles
- Thread Size: 6-32 UNC 2A, panel mounting design
- Certifications: UL 61058-1, compliant for global industrial use
- Suitable Applications: Off-road, agricultural, construction vehicles, outdoor industrial equipment, material handling, lift controls
- Electrical Load Capacity: Maintained functions up to 15A, 277VAC; Momentary up to 10A, 28VDC
- Dimension Tolerances: Dimensions shown are approximate and subject to change
- Packaging: Tray
Buy the C&K PT201SSQ – Reliable Toggle Switch for Industrial Applications
Purchase the C&K PT201SSQ sealed power toggle switch online today to enhance your industrial or outdoor equipment with a reliable, sealed, and vibration-resistant control component. Designed for harsh environments, it features IP66/IP68 ratings, UL certification, and durable materials, ensuring long-lasting performance. Its versatile mounting options and various terminal types provide flexibility for different applications. Upgrade your machinery now with this robust switch, guaranteed to withstand demanding conditions and deliver dependable operation in construction, agricultural, or material handling equipment.
Order your C&K Series PT201SSQ toggle switch today and ensure dependable control in demanding outdoor and heavy-duty environments.
