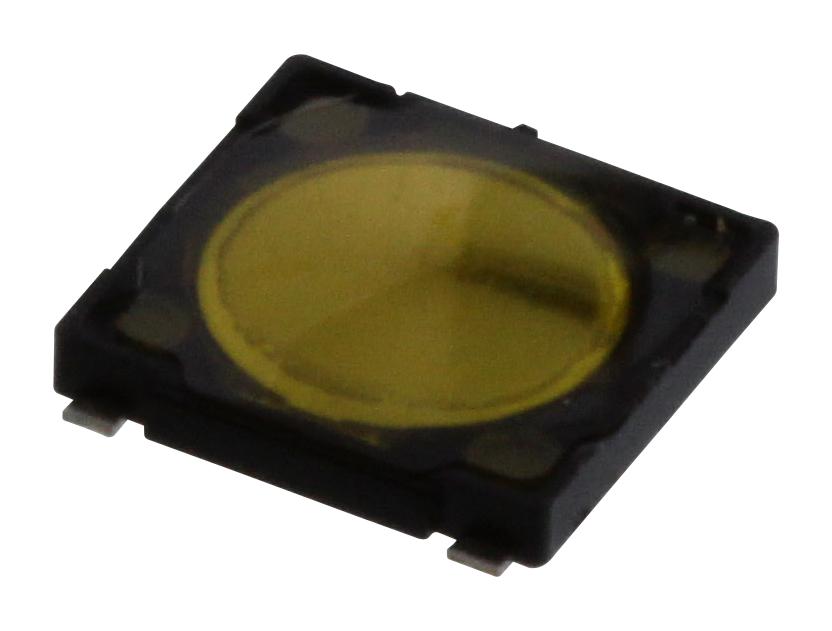

C&K COMPONENTS PTS530GG065SMTRLFS Low Profile Tactile Switch
The PTS 530 Series Ultra Low Profile SMT Top Actuated tactile switch features a 4.5 x 4.5 mm footprint and only 0.55 mm thickness, making it ideal for compact electronic designs such as Bluetooth headsets, remote controls, MP3 accessories, and garage door openers. It offers high cycle reliability, with a maximum operational life of up to 7 million cycles. The switch provides a momentary action with SPST N.O. contact arrangement, a maximum voltage of 12 VDC, and a contact resistance below 100 mΩ. Soldering is suitable for infrared reflow according to IEC61760-1, and it operates reliably between -40°C and 85°C.
C&K COMPONENTS PTS530GG065SMTRLFS Low Profile Tactile Switch Specifications:
- Footprint: 4.5 x 4.5 mm
- Thickness: 0.55 mm
- Contact Arrangement: SPST N.O.
- Max Voltage: 12 VDC
- Max Current: 50 mA
- Dielectric Strength: 250 VA C (1mn)
- Contact Resistance: <100 mΩ
- Insulation Resistance: >100 MΩ
- Bounce Time: <10 ms
- Operating Temperature: -40°C to 85°C
- Mechanical Life: Up to 7,000,000 operations for model PTS530 GMO55
- Soldering Method: Infrared reflow according to IEC61760-1
- Packaging: Tape & reel, reel diameter 330 mm, 7,000 pieces per reel
- Termination: Gullwing, RoHS compliant, silver plated
- Body Type: Various actuation forces from 100 gf to 600 gf
- Height options: 0.55 mm, 0.65 mm
- Dimensions (approx.): 4.95 mm height for 0.55 mm models, 4.68 mm for 0.65 mm models
- Symbol line identification for 600 gf actuation force
Buy the Ck Switches Series PTS 530 Tactile Switch: G065SMTRLFS
Purchase the Ck Switches Series PTS 530 G065SMTRLFS tactile switch online today. This ultra low-profile SMT switch ensures reliable actuation with up to 7 million cycles, making it perfect for compact electronic applications like remote controls, Bluetooth headsets, and MP3 accessories. Its 4.5 x 4.5 mm footprint and 0.55 mm thickness enable space-saving designs. It features a SPST N.O. contact, maximum 12 VDC voltage, and excellent resistance to environmental stresses. Improve your electronics with trusted quality and quick delivery today!
Order your Ck Switches Series PTS 530 G065SMTRLFS tactile switch today and enhance your compact electronic devices with reliable, low-profile actuation.
