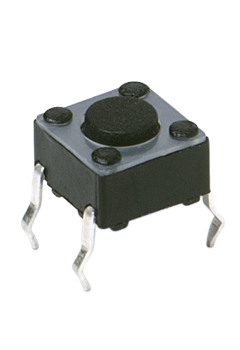

C&K COMPONENTS PTS645SM70SMTR92LFS 6 mm Tact Switch
The C&K PTS645SM70SMTR92LFS is a 6 mm tactile switch designed for a wide range of applications. Its compact size and versatile design allow for integration into various devices. The switch offers momentary action with an SPST contact arrangement and is available with different actuation forces to meet specific requirements. It is RoHS compliant and suitable for consumer products, instrumentation, computer products, and industrial environments. The switch is available in tape and reel packaging for automated assembly processes.
C&K COMPONENTS PTS645SM70SMTR92LFS 6 mm Tact Switch Specifications:
- Function: Momentary action
- Contact Arrangement: SPST, N.O.
- Terminals: PC pins
- Actuation Force: 130 grams, 160 grams, 200 grams, 260 grams
- Life Expectancy: 100,000 operations
- Soldering: Preheating to 100˚C for 45 sec. max.
- Contact Rating: 50 mA @ 12 V DC
- Dielectric Strength: 250 V AC min.
- Contact Resistance: 100 mΩ max. initial
- Insulation Resistance: 10[11] Ω min.
- Operating Temperature: -20˚C to 70˚C (Thru-hole and SMT with J actuator shape)
- Operating Temperature SMT: -20˚C to 85˚C (SMT except for J actuator shape)
