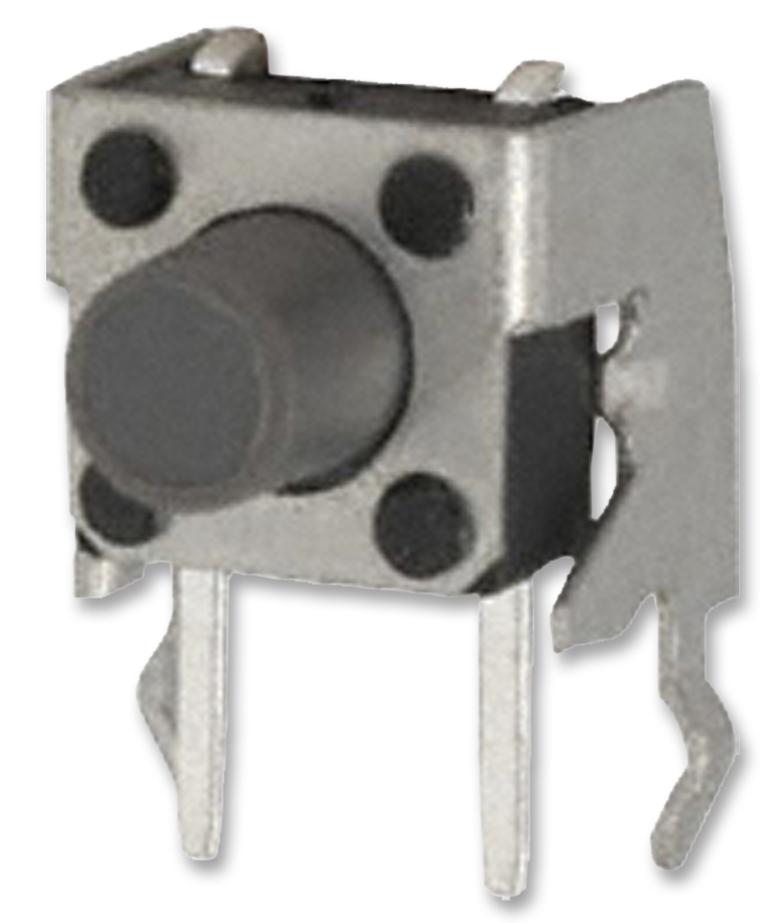

C&K COMPONENTS PTS645VH582LFS tact switch
The PTS645V Series 6 mm tact switches are compact, momentary SPST devices with a variety of actuator lengths and force options, designed for consumer, industrial, and instrument applications. They feature a load rating of 50 mA at 12 V DC, operate from -20°C to 60°C, and have an estimated life of 100,000 operations. Made with durable materials like nylon or PBT for bases, and phosphor bronze contacts, these switches ensure reliable performance in various environments. Easy to solder with surface mount or thru-hole options available, offering versatile installation and robust operation.
C&K COMPONENTS PTS645VH582LFS tact switch Specifications:
- Function: Momentary action
- Contact Arrangement: SPST, N.O.
- Terminals: PC pins
- Actuation Force: 130g, 160g, 200g, 260g
- Life Expectancy: 100,000 operations
- Contact Rating: 50 mA @ 12 V DC
- Dielectric Strength: 250 V AC min.
- Contact Resistance: 100 mΩ max. initial
- Insulation Resistance: 10 MΩ min.
- Operating Temperature: -20°C to 60°C
- Base Material: 6/6 nylon or glass-filled polyester
- Actuator Material: 6/6 nylon or polyacetal
- Materials for contacts: Phosphor bronze, silver clad, brass, silver plated
- Soldering: Preheating to 100°C for 45 sec., solder to 255°C max. for 5 sec.
- Dimensions: 6 x 6 mm, actuator heights adjustable to PCB with options from 3.15 to 15.85 mm, termination via thru-hole or SMT
- Housing Cover: Polyester or stainless steel, depending on model
- Environmental: RoHS compliant, compatible with lead-free soldering
- Packaging: Bulk or tape & reel with 1,000 pieces for SMT type
Buy the CK Components Series PTS645 V Series Tact Switch: PTS645VH582LFS
Order the CK Components PTS645VH582LFS tact switch easily online today to ensure your electronic devices benefit from high-quality, durable, and reliable switching performance. Designed for versatility with multiple actuator heights and mounting options, this switch provides excellent tactile feedback and long-lasting operation, making it ideal for consumer electronics, industrial control panels, and instrumentation. With simple online ordering, rapid delivery, and guaranteed quality, enhance your project efficiency with this premium surface-mount or thru-hole tact switch today.
Buy CK Components PTS645VH582LFS now and experience unmatched reliability and performance in compact tact switches for your electronic applications.
