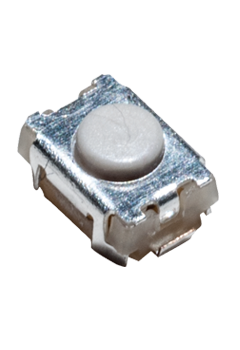

C&K COMPONENTS PTS820J15MSMTRLFS Microminiature SMT Pushbutton
The C&K PTS820 series microminiature SMT top-actuated pushbutton switches offer a compact and versatile solution for a wide range of applications. These switches are designed for surface mount technology (SMT) and feature a small footprint, multiple height options (1.5mm, 2.0mm, and 2.5mm), and a high number of cycles. They are commonly used in control panels, nomad devices, remote controls, and keyless entry systems. The switches are available with or without pegs and offer various actuation forces to meet specific application requirements. The easy build-a-switch concept allows for customization to create a switch tailored to the user's needs. Refer to the datasheet for detailed specifications and ordering information.
C&K COMPONENTS PTS820J15MSMTRLFS Microminiature SMT Pushbutton Specifications:
- function: momentary action
- contact_arrangement: 1 make contact = SPST N.O.
- terminals: J type for SMT
- travel: 0.2mm + 0.1mm / -0.05 mm
- operating_force: 160± 50 gf
- life_cycles: 200,000 cycles
- height: 1.5 mm
- maximum_voltage: 12 VDC
- maximum_current_dc: 50 mA
- dielectric_strength: 100 VA C (1mn)
- contact_resistance: ≤ 100 mΩ
- insulation_resistance: ≥ 100 MΩ
- bounce_time: ≤ 10 ms
- operating_temperature: -40˚C to 85˚C
- soldering: Infrared Reflow Soldering in accordance with IEC61760-1
- packaging_quantity_1_5mm: 2,500 pieces per reel
- packaging_quantity_2_0mm: 2,300 pieces per reel
- packaging_quantity_2_5mm: 2,300 pieces per reel
- reel_diameter: 330 mm
Buy the PTS820J15MSMTRLFS C&K COMPONENTS Microminiature SMT Pushbutton | myMectronic
Securely purchase the C&K PTS820J15MSMTRLFS SMT pushbutton switch online for reliable performance and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS PTS820J15MSMTRLFS?
You can click on the BUY or RFQ button to purchase PTS820J15MSMTRLFS from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PTS820J15MSMTRLFS?
You can download the PTS820J15MSMTRLFS datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PTS820J15MSMTRLFS?
C&K COMPONENTS
