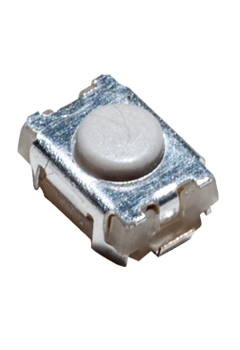

C&K COMPONENTS PTS820J25KSMTRLFS Microminiature SMT Pushbutton
The C&K PTS820 series microminiature SMT top-actuated pushbutton switches are designed for a wide range of applications, including control panels, nomad devices, remote controls, and keyless entry systems. These switches offer a compact 3.9 x 2.9 mm footprint and are available in three different heights (1.5mm, 2.0mm, and 2.5mm) to accommodate various design requirements. The switches feature momentary action and a high number of cycles, ensuring reliable performance. They are RoHS compliant and suitable for infrared reflow soldering. The easy build-a-switch concept allows for customization to meet specific application needs.
C&K COMPONENTS PTS820J25KSMTRLFS Microminiature SMT Pushbutton Specifications:
- function: momentary action
- contact_arrangement: 1 make contact = SPST N.O.
- terminals: J type for SMT
- travel: 0.2mm + 0.1mm / -0.05 mm
- operating_force: 160± 50 gf
- life_cycles: 100,000 - 200,000 cycles
- height: 1.5mm, 2.0mm, 2.5mm
- maximum_voltage: 12 VDC
- maximum_current_dc: 50 mA
- dielectric_strength: 100 VA C (1mn)
- contact_resistance: ≤ 100 mΩ
- insulation_resistance: ≥ 100 MΩ
- bounce_time: ≤ 10 ms
- operating_temperature: -40˚C to 85˚C
- soldering: Infrared Reflow Soldering in accordance with IEC61760-1
- packaging: Reels of 2,500 (1.5/2.0mm) or 2,300 (2.5mm) pieces, EIA 481B, 330mm diameter
