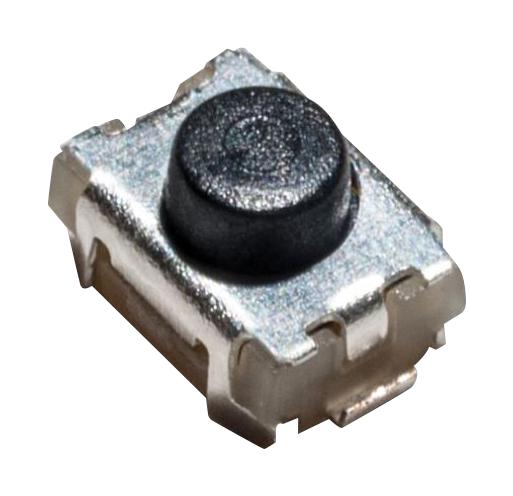

C&K COMPONENTS PTS820J25MSMTRLFS Microminiature SMT Tactile Switch
The PTS 820 Series are microminiature SMT top actuated tactile switches designed for compact control applications and remote devices. Available in 2.0 mm, 2.5 mm, and 1.5 mm heights with various actuation forces, these switches offer high cycle durability up to 200,000 cycles. They feature a 1 make contact (SPST N.O.), rugged construction with RoHS compliance, and are suitable for infrared reflow soldering. Ideal for control panels, keyless entry systems, and Nomad devices, they operate reliably from -40°C to +85°C, ensuring long-lasting performance.
C&K COMPONENTS PTS820J25MSMTRLFS Microminiature SMT Tactile Switch Specifications:
- Function: momentary action
- Maximum Voltage: 12 VDC
- Contact Arrangement: SPST N.O.
- Travel: 0.2 mm + 0.1 mm / -0.05 mm
- Contact Resistance: < 100 mΩ
- Insulation Resistance: > 100 MΩ
- Bounce Time: < 10 ms
- Operating Temperature: -40°C to 85°C
- Actuation Force: 160 gF or 260 gF
- Cycles: up to 200,000
- Terminals: J type for SMT
- Soldering: Infrared reflow compatible according to IEC61760-1
- Package: reels of 2,500 for 2.0 and 2.5 mm height, reels of 3,000 for 1.5 mm height
- Dimensions: 1.5 mm, 2.0 mm, 2.5 mm heights, external reel diameter 330 mm
Buy the Buy CK Switch PTS 820 Series Part Number PTS820J25MSMTRLFS Online
Enhance your control system with the reliable PTS 820 Series microminiature SMT tactile switches, available in multiple heights. These switches feature high cycle durability, easy infrared reflow soldering, and operate efficiently from -40°C to 85°C. Perfect for control panels, remote controls, and keyless entry systems, they ensure long-lasting performance and precise actuation. Choose from various actuation forces and packaging options, including reels, to meet your manufacturing needs. Buy online now for a dependable and space-saving switching solution.
Get CK Switch PTS 820 Series J25MSMTRLFS today—designed for high cycle life and compact SMT applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PTS820J25MSMTRLFS?
You can click on the BUY or RFQ button to purchase PTS820J25MSMTRLFS from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PTS820J25MSMTRLFS?
You can download the PTS820J25MSMTRLFS datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PTS820J25MSMTRLFS?
C&K COMPONENTS
