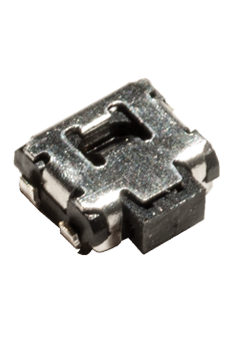

C&K COMPONENTS PTS840ESDGMPSMTRLFS Microminiature SMT Switch
The C&K Components PTS840ESDGMPSMTRLFS is a microminiature SMT side-actuated tactile switch designed for a variety of applications including nomad devices, remote controls, and personal health diagnostics. It incorporates features like an ESD pin option for electrostatic discharge protection and a front PIP leads option for enhanced shear resistance. The switch boasts a compact footprint and is suitable for infrared reflow soldering. Its robust construction and reliable performance make it a suitable choice for demanding industrial environments. The easy build-a-switch concept allows for customization to meet specific application requirements.
C&K COMPONENTS PTS840ESDGMPSMTRLFS Microminiature SMT Switch Specifications:
- Maximum Voltage: 12 VDC
- Maximum Current DC: 50 mA
- Dielectric Strength: 250 VA C (1mn)
- Contact Resistance: ≤ 500 mΩ
- Insulation Resistance: ≥ 100 MΩ
- Bounce Time: ≤ 10 ms
- Function: momentary action
- Contact Arrangement: 1 make contact = SPST N.O.
- Terminals: G and front PIP types for SMT
- Travel: 0.2mm + 0.2mm / -0.1 mm
- Life: 100,000 cycles
- Operating Temperature: -40˚C to 85˚C
- Soldering: Infrared Reflow Soldering in accordance with IEC61760-1
- Packaging: In reels of 3,500 pieces, Dimensions of reels according to EIA 481B, External diameter 330 mm
- Operating Force: 160-40/+70 gf
