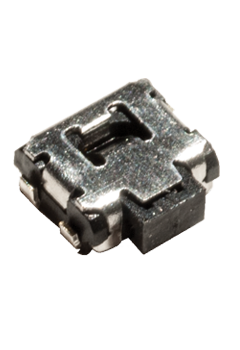

C&K COMPONENTS PTS840GMPSMTRLFS Microminiature SMT Switch
The C&K Components PTS840GMPSMTRLFS is a microminiature side-actuated SMT switch designed for a variety of applications requiring a small footprint and reliable performance. It offers options for ESD protection and enhanced shear resistance through front PIP leads. The switch is suitable for infrared reflow soldering and is available in tape and reel packaging for automated assembly. Its compact size and customizable options make it well-suited for use in nomad devices, remote controls, and personal health diagnostics, among other applications. The easy build-a-switch concept allows for tailored configurations to meet specific design requirements.
C&K COMPONENTS PTS840GMPSMTRLFS Microminiature SMT Switch Specifications:
- maximum_voltage: 12 VDC
- maximum_current_dc: 50 mA
- dielectric_strength: 250 VA C (1mn)
- contact_resistance: ≤ 500 mΩ
- insulation_resistance: ≥ 100 MΩ
- bounce_time: ≤ 10 ms
- contact_arrangement: 1 make contact = SPST N.O.
- terminals: G and front PIP types for SMT
- travel: 0.2mm + 0.2mm / -0.1 mm
- life: 100,000 cycles
- operating_temperature: -40˚C to 85˚C
- soldering: Infrared Reflow Soldering in accordance with IEC61760-1
- packaging: In reels of 3,500 pieces Dimensions of reels according to EIA 481B External diameter 330 mm
