C&K COMPONENTS PVA1OAH135NV2 Short Stroke Key Switches
Short stroke key switches designed for compact and medium power applications, offering reliable momentary or push-push operation, with wide actuator height options for control panels and industrial use. Features include switching power up to 3 W DC, switching voltage up to 32 V DC, and operating temperature range from -40°C to 85°C. These switches are RoHS compliant, compatible with lead-free soldering, and available with various terminals including snap-in and PCB options. Suitable for automotive, industrial, and control panel systems, they provide high durability with over 1 million operations and low contact resistance.
C&K COMPONENTS PVA1OAH135NV2 Short Stroke Key Switches Specifications:
- Switching Power Max.: 3 W DC
- Switching Voltage Max.: 32 V DC
- Switching Current Max.: 100 mA DC
- Dielectric Strength: 1000 V between open contacts for PVA2, 750 V for PVA1
- Contact Arrangement: DPST or DPDT
- Mechanical Operating Life: > 1 x 10^6 operations
- Electrical Operating Life: > 1 x 10^6 operations
- Initial Contact Resistance: < 100 mΩ
- Insulation Resistance: > 10^9 Ω
- Bounce Time: < 3 ms
- Electrical Travel: 0.8 mm (1.1 mm for PVA2 OA HS)
- Operating Force: 1.2 N, 1.7 N, 3.5 N
- Operating Temperature: -40°C to 85°C
- Solderability: Wave and hand soldering compatible, lead-free profile
- Terminal Types: PC pins, snap-in, with options for custom ordering
- Dimensions: H1 13mm, H2 23mm, H3 20.5mm, H4 15mm, H5 13mm
- Suitable for automotive, industrial, control panels, and general electronic applications

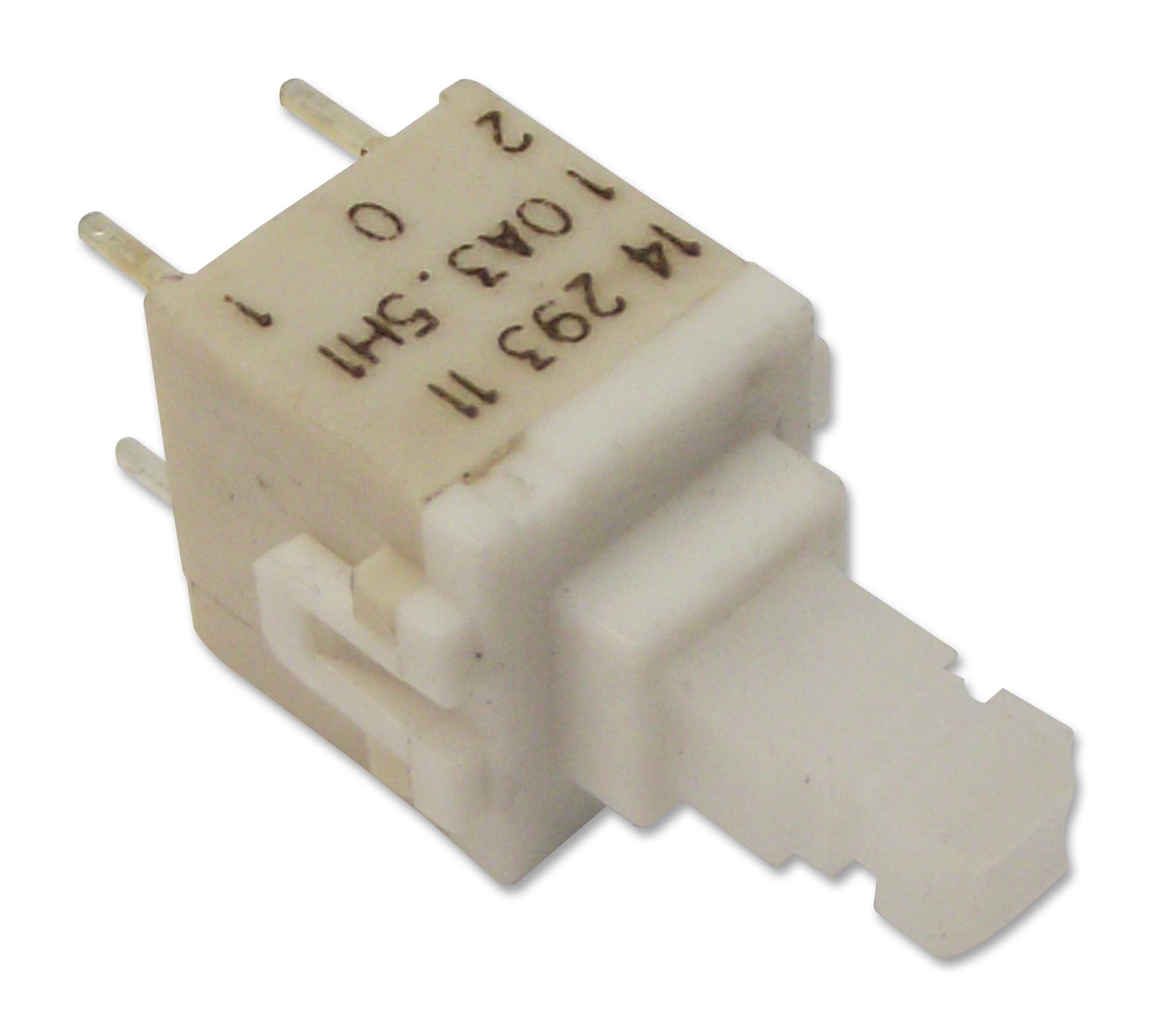

Buy the Buy PVA Short Stroke Key Switch Part Number PVA1OAH135NV2 Online
Enhance your control panel or industrial assembly with our reliable short stroke key switches, designed for medium power applications and durability. These switches support switching voltages up to 32 V DC and switching power up to 3 W, with over 1 million operations rated. Available in various actuator heights and terminal configurations, they are RoHS compliant and compatible with lead-free soldering. Perfect for automotive, industrial, and control panel systems, ensuring precise operation and long-term performance.
Get PVA short stroke key switch PVA1OAH135NV2 today—built for precise control and long-lasting durability.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PVA1OAH135NV2?
You can click on the BUY or RFQ button to purchase PVA1OAH135NV2 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PVA1OAH135NV2?
You can download the PVA1OAH135NV2 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PVA1OAH135NV2?
C&K COMPONENTS
