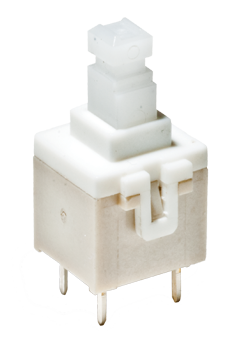

C&K COMPONENTS PVA2EEH117NV2 Short Stroke Key Switch
The C&K COMPONENTS PVA2EEH11.7NV2 is a versatile short-stroke key switch designed for a wide range of applications. Its compact design and short stroke to latch mechanism offer efficient operation, while the variety of actuator heights provides flexibility in integration. This switch is well-suited for automotive systems like air conditioning and lighting, as well as industrial control panels. It is RoHS compliant and offers a robust solution for momentary push-push functionality with DPDT contact arrangement. The easy build-a-switch concept allows for customization to meet specific application requirements.
C&K COMPONENTS PVA2EEH117NV2 Short Stroke Key Switch Specifications:
- Compact design: Yes
- Short stroke to latch: Yes
- Actuator heights: Wide variety
- Adapted for: Medium power applications
- Typical applications: Automotive, Industrial, Control panel
- Function: Momentary, Push-Push
- Contact arrangement: 2 change over contacts (DPDT)
- Switching mode: Non-shorting
- Terminals: PC pins
- Total travel: 2.4 mm
- Latching travel: 2.4 / 1.5 mm
- Electrical travel: 0.8 mm
- Operating force: 1.2N, 1.7N, 3.5N
- Switching power max: 3 W DC
- Switching voltage max: 32 V DC
- Switching current max: 100 mA DC
- Dielectric strength: 1000 V (between open contacts), PVA2: 750 V
- Operating life: ≥ 1 x 10[5] operations
- Contact resistance: Initial ≤ 100 mΩ
- Insulation resistance: ≥ 10[10 ] Ω
- Bounce time: ≤ 3 ms
- Operating temperature: -40˚C to 85˚C
- Solderability: Wave soldering, compatible with lead free soldering profile; Hand soldering, 350˚C for 3 seconds
- RoHS Compliant: Yes
